[MSGV-14-0600-S10-42A2ST09] Model MSGV F4 - SS-304 Metal Seated Gate Valve, DN600-PN10 with Handwheel

Model MSGV F4 - SS-304 Metal Seated Gate Valve, DN600-PN10 with Handwheel

Metal Seated Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 (F4) , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge & Body Sealing: Stainless Steel A2-AISI-304 (EN-1.4301), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
Price: 6,806.00 €
Forecasted: 0
Please contact us for updated Stock Availability
[MSGV-14-0200-S16-42A2ST09] Model MSGV F4 - SS-304 Metal Seated Gate Valve, DN200-PN16 with Handwheel

Model MSGV F4 - SS-304 Metal Seated Gate Valve, DN200-PN16 with Handwheel

Metal Seated Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 (F4) , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge & Body Sealing: Stainless Steel A2-AISI-304 (EN-1.4301), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
Price: 628.00 €
Forecasted: 0
Please contact us for updated Stock Availability
[MSGV-14-0250-S16-42A2ST09] Model MSGV F4 - SS-304 Metal Seated Gate Valve, DN250-PN16 with Handwheel

Model MSGV F4 - SS-304 Metal Seated Gate Valve, DN250-PN16 with Handwheel

Metal Seated Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 (F4) , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge & Body Sealing: Stainless Steel A2-AISI-304 (EN-1.4301), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
Price: 1,190.00 €
Forecasted: 0
Please contact us for updated Stock Availability
[MSGV-14-0300-S16-42A2ST09] Model MSGV F4 - SS-304 Metal Seated Gate Valve, DN300-PN16 with Handwheel

Model MSGV F4 - SS-304 Metal Seated Gate Valve, DN300-PN16 with Handwheel

Metal Seated Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 (F4) , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge & Body Sealing: Stainless Steel A2-AISI-304 (EN-1.4301), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
Price: 1,329.00 €
Forecasted: 0
Please contact us for updated Stock Availability
[MSGV-14-0350-S16-42A2ST09] Model MSGV F4 - SS-304 Metal Seated Gate Valve, DN350-PN16 with Handwheel

Model MSGV F4 - SS-304 Metal Seated Gate Valve, DN350-PN16 with Handwheel

Metal Seated Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 (F4) , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge & Body Sealing: Stainless Steel A2-AISI-304 (EN-1.4301), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
Price: 2,002.00 €
Forecasted: 0
Please contact us for updated Stock Availability
[MSGV-14-0400-S16-42A2ST09] Model MSGV F4 - SS-304 Metal Seated Gate Valve, DN400-PN16 with Handwheel

Model MSGV F4 - SS-304 Metal Seated Gate Valve, DN400-PN16 with Handwheel

Metal Seated Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 (F4) , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge & Body Sealing: Stainless Steel A2-AISI-304 (EN-1.4301), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
Price: 2,752.00 €
Forecasted: 0
Please contact us for updated Stock Availability
[MSGV-14-0450-S16-42A2ST09] Model MSGV F4 - SS-304 Metal Seated Gate Valve, DN450-PN16 with Handwheel

Model MSGV F4 - SS-304 Metal Seated Gate Valve, DN450-PN16 with Handwheel

Metal Seated Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 (F4) , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge & Body Sealing: Stainless Steel A2-AISI-304 (EN-1.4301), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
Price: 4,417.00 €
Forecasted: 0
Please contact us for updated Stock Availability
[MSGV-14-0500-S16-42A2ST09] Model MSGV F4 - SS-304 Metal Seated Gate Valve, DN500-PN16 with Handwheel

Model MSGV F4 - SS-304 Metal Seated Gate Valve, DN500-PN16 with Handwheel

Metal Seated Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 (F4) , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge & Body Sealing: Stainless Steel A2-AISI-304 (EN-1.4301), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
Price: 4,697.00 €
Forecasted: 0
Please contact us for updated Stock Availability
[MSGV-14-0600-S16-42A2ST09] Model MSGV F4 - SS-304 Metal Seated Gate Valve, DN600-PN16 with Handwheel

Model MSGV F4 - SS-304 Metal Seated Gate Valve, DN600-PN16 with Handwheel

Metal Seated Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 (F4) , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge & Body Sealing: Stainless Steel A2-AISI-304 (EN-1.4301), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
Price: 6,806.00 €
Forecasted: 0
Please contact us for updated Stock Availability
[PLUVA-15-0100-E16-A2A2ST02] Model PLUVA Plunger Valve, DN100-PN10/16, EPDM. Operation: AUMA Gearbox with Handwheel & ISO Top (ISO-5210)

Model PLUVA Plunger Valve, DN100-PN10/16, EPDM. Operation: AUMA Gearbox with Handwheel & ISO Top (ISO-5210)

Plunger -Needle Valve, Body: GGG50 (EN-GJS-500-7), Face to Face acc. EN 558-1 Series 15 (F5) up to DN450. Above DN500-DN1200: 1.5 * DN, Flanges acc. EN 1092-2 RF, Piston: SS-304-A2 (ASTM A351 GR CF8), Connecting Rod: SS-304-A2 (ASTM A351 GR CF8), Crank: SS-304-A2 (ASTM A351 GR CF8), Shaft: F51 Duplex 2205 Stainless Steel (22% Cr - SS ASTM A182 GR F51), Retaining Ring: SS-304-A2 (ASTM A351 GR CF8), Seat Sealing: EPDM (WRAS-DVGW W-270), Piston Guide: Bronze Overlay, Shaft Bushing: Bronze, Cap screws: A4-70 (SS-316), Vent Plug: SS-304-A2, Eye Bolt: C15. Valve Test as per EN-12266-1, Coating: Fusion Bonded Epoxy Coating RAL-5005 (WRAS-DVGW W-270), min 250 microns.
Price: 2,206.00 €
Forecasted: 0
Please contact us for updated Stock Availability
[PLUVA-15-0150-E16-A2A2ST02] Model PLUVA Plunger Valve, DN150-PN10/16, EPDM. Operation: AUMA Gearbox with Handwheel & ISO Top (ISO-5210)

Model PLUVA Plunger Valve, DN150-PN10/16, EPDM. Operation: AUMA Gearbox with Handwheel & ISO Top (ISO-5210)

Plunger -Needle Valve, Body: GGG50 (EN-GJS-500-7), Face to Face acc. EN 558-1 Series 15 (F5) up to DN450. Above DN500-DN1200: 1.5 * DN, Flanges acc. EN 1092-2 RF, Piston: SS-304-A2 (ASTM A351 GR CF8), Connecting Rod: SS-304-A2 (ASTM A351 GR CF8), Crank: SS-304-A2 (ASTM A351 GR CF8), Shaft: F51 Duplex 2205 Stainless Steel (22% Cr - SS ASTM A182 GR F51), Retaining Ring: SS-304-A2 (ASTM A351 GR CF8), Seat Sealing: EPDM (WRAS-DVGW W-270), Piston Guide: Bronze Overlay, Shaft Bushing: Bronze, Cap screws: A4-70 (SS-316), Vent Plug: SS-304-A2, Eye Bolt: C15. Valve Test as per EN-12266-1, Coating: Fusion Bonded Epoxy Coating RAL-5005 (WRAS-DVGW W-270), min 250 microns.
Price: 3,355.87 €
Forecasted: 0
Please contact us for updated Stock Availability
[PLUVA-15-0200-E10-A2A2ST02] Model PLUVA Plunger Valve, DN200-PN10, EPDM. Operation: AUMA Gearbox with Handwheel & ISO Top (ISO-5210)

Model PLUVA Plunger Valve, DN200-PN10, EPDM. Operation: AUMA Gearbox with Handwheel & ISO Top (ISO-5210)

Plunger -Needle Valve, Body: GGG50 (EN-GJS-500-7), Face to Face acc. EN 558-1 Series 15 (F5) up to DN450. Above DN500-DN1200: 1.5 * DN, Flanges acc. EN 1092-2 RF, Piston: SS-304-A2 (ASTM A351 GR CF8), Connecting Rod: SS-304-A2 (ASTM A351 GR CF8), Crank: SS-304-A2 (ASTM A351 GR CF8), Shaft: F51 Duplex 2205 Stainless Steel (22% Cr - SS ASTM A182 GR F51), Retaining Ring: SS-304-A2 (ASTM A351 GR CF8), Seat Sealing: EPDM (WRAS-DVGW W-270), Piston Guide: Bronze Overlay, Shaft Bushing: Bronze, Cap screws: A4-70 (SS-316), Vent Plug: SS-304-A2, Eye Bolt: C15. Valve Test as per EN-12266-1, Coating: Fusion Bonded Epoxy Coating RAL-5005 (WRAS-DVGW W-270), min 250 microns.
Price: 5,575.29 €
Forecasted: 0
Please contact us for updated Stock Availability
[PLUVA-15-0250-E10-A2A2ST02] Model PLUVA Plunger Valve, DN250-PN10, EPDM. Operation: AUMA Gearbox with Handwheel & ISO Top (ISO-5210)

Model PLUVA Plunger Valve, DN250-PN10, EPDM. Operation: AUMA Gearbox with Handwheel & ISO Top (ISO-5210)

Plunger -Needle Valve, Body: GGG50 (EN-GJS-500-7), Face to Face acc. EN 558-1 Series 15 (F5) up to DN450. Above DN500-DN1200: 1.5 * DN, Flanges acc. EN 1092-2 RF, Piston: SS-304-A2 (ASTM A351 GR CF8), Connecting Rod: SS-304-A2 (ASTM A351 GR CF8), Crank: SS-304-A2 (ASTM A351 GR CF8), Shaft: F51 Duplex 2205 Stainless Steel (22% Cr - SS ASTM A182 GR F51), Retaining Ring: SS-304-A2 (ASTM A351 GR CF8), Seat Sealing: EPDM (WRAS-DVGW W-270), Piston Guide: Bronze Overlay, Shaft Bushing: Bronze, Cap screws: A4-70 (SS-316), Vent Plug: SS-304-A2, Eye Bolt: C15. Valve Test as per EN-12266-1, Coating: Fusion Bonded Epoxy Coating RAL-5005 (WRAS-DVGW W-270), min 250 microns.
Price: 7,901.67 €
Forecasted: 0
Please contact us for updated Stock Availability
[PLUVA-15-0300-E10-A2A2ST02] Model PLUVA Plunger Valve, DN300-PN10, EPDM. Operation: AUMA Gearbox with Handwheel & ISO Top (ISO-5210)

Model PLUVA Plunger Valve, DN300-PN10, EPDM. Operation: AUMA Gearbox with Handwheel & ISO Top (ISO-5210)

Plunger -Needle Valve, Body: GGG50 (EN-GJS-500-7), Face to Face acc. EN 558-1 Series 15 (F5) up to DN450. Above DN500-DN1200: 1.5 * DN, Flanges acc. EN 1092-2 RF, Piston: SS-304-A2 (ASTM A351 GR CF8), Connecting Rod: SS-304-A2 (ASTM A351 GR CF8), Crank: SS-304-A2 (ASTM A351 GR CF8), Shaft: F51 Duplex 2205 Stainless Steel (22% Cr - SS ASTM A182 GR F51), Retaining Ring: SS-304-A2 (ASTM A351 GR CF8), Seat Sealing: EPDM (WRAS-DVGW W-270), Piston Guide: Bronze Overlay, Shaft Bushing: Bronze, Cap screws: A4-70 (SS-316), Vent Plug: SS-304-A2, Eye Bolt: C15. Valve Test as per EN-12266-1, Coating: Fusion Bonded Epoxy Coating RAL-5005 (WRAS-DVGW W-270), min 250 microns.
Price: 9,556.88 €
Forecasted: 0
Please contact us for updated Stock Availability
[PLUVA-15-0350-E10-A2A2ST02] Model PLUVA Plunger Valve, DN350-PN10, EPDM. Operation: AUMA Gearbox with Handwheel & ISO Top (ISO-5210)

Model PLUVA Plunger Valve, DN350-PN10, EPDM. Operation: AUMA Gearbox with Handwheel & ISO Top (ISO-5210)

Plunger -Needle Valve, Body: GGG50 (EN-GJS-500-7), Face to Face acc. EN 558-1 Series 15 (F5) up to DN450. Above DN500-DN1200: 1.5 * DN, Flanges acc. EN 1092-2 RF, Piston: SS-304-A2 (ASTM A351 GR CF8), Connecting Rod: SS-304-A2 (ASTM A351 GR CF8), Crank: SS-304-A2 (ASTM A351 GR CF8), Shaft: F51 Duplex 2205 Stainless Steel (22% Cr - SS ASTM A182 GR F51), Retaining Ring: SS-304-A2 (ASTM A351 GR CF8), Seat Sealing: EPDM (WRAS-DVGW W-270), Piston Guide: Bronze Overlay, Shaft Bushing: Bronze, Cap screws: A4-70 (SS-316), Vent Plug: SS-304-A2, Eye Bolt: C15. Valve Test as per EN-12266-1, Coating: Fusion Bonded Epoxy Coating RAL-5005 (WRAS-DVGW W-270), min 250 microns.
Price: 9,268.08 €
Forecasted: 0
Please contact us for updated Stock Availability

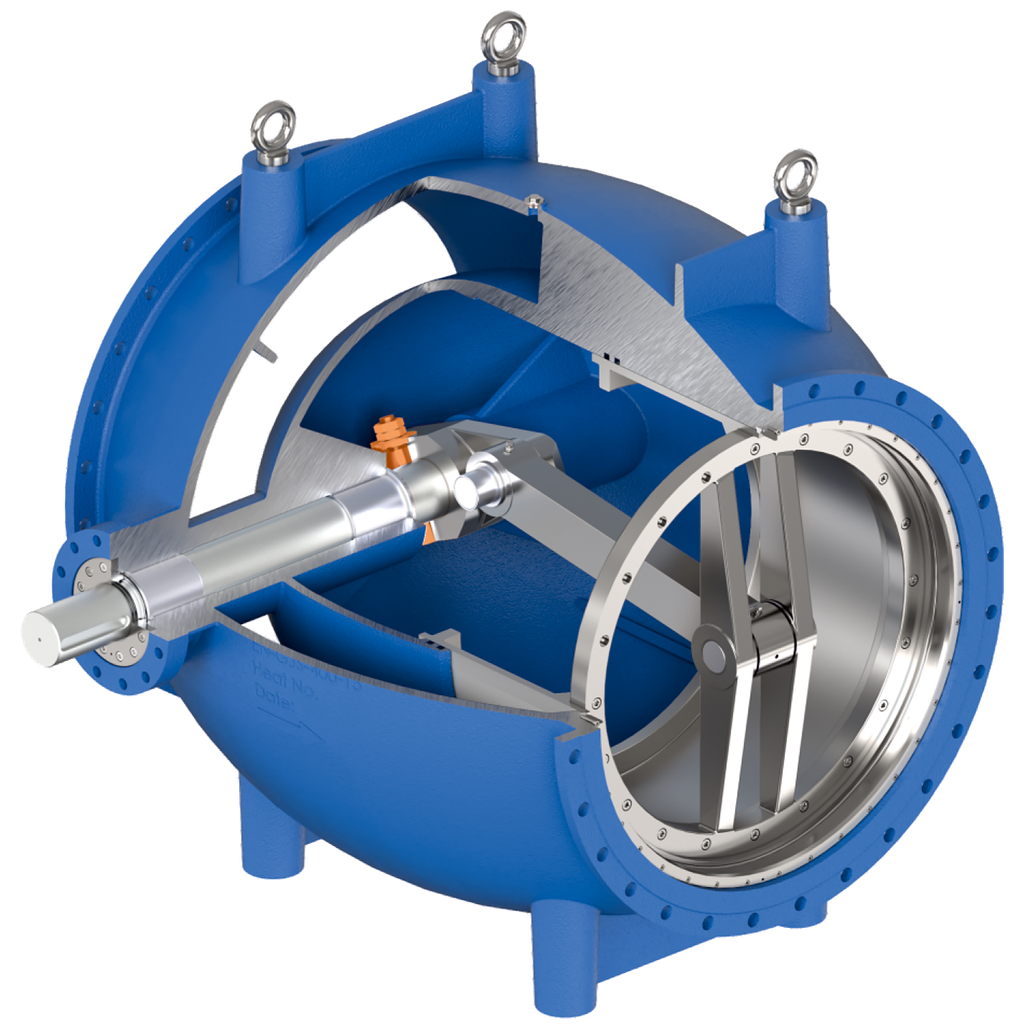

[PLUVA-15-0400-E10-A2A2ST02] Model PLUVA Plunger Valve, DN400-PN10, EPDM. Operation: AUMA Gearbox with Handwheel & ISO Top (ISO-5210)

Model PLUVA Plunger Valve, DN400-PN10, EPDM. Operation: AUMA Gearbox with Handwheel & ISO Top (ISO-5210)

Plunger -Needle Valve, Body: GGG50 (EN-GJS-500-7), Face to Face acc. EN 558-1 Series 15 (F5) up to DN450. Above DN500-DN1200: 1.5 * DN, Flanges acc. EN 1092-2 RF, Piston: SS-304-A2 (ASTM A351 GR CF8), Connecting Rod: SS-304-A2 (ASTM A351 GR CF8), Crank: SS-304-A2 (ASTM A351 GR CF8), Shaft: F51 Duplex 2205 Stainless Steel (22% Cr - SS ASTM A182 GR F51), Retaining Ring: SS-304-A2 (ASTM A351 GR CF8), Seat Sealing: EPDM (WRAS-DVGW W-270), Piston Guide: Bronze Overlay, Shaft Bushing: Bronze, Cap screws: A4-70 (SS-316), Vent Plug: SS-304-A2, Eye Bolt: C15. Valve Test as per EN-12266-1, Coating: Fusion Bonded Epoxy Coating RAL-5005 (WRAS-DVGW W-270), min 250 microns.
Price: 11,813.73 €
Forecasted: 0
Please contact us for updated Stock Availability
[PLUVA-15-0450-E10-A2A2ST02] Model PLUVA Plunger Valve, DN450-PN10, EPDM. Operation: AUMA Gearbox with Handwheel & ISO Top (ISO-5210)

Model PLUVA Plunger Valve, DN450-PN10, EPDM. Operation: AUMA Gearbox with Handwheel & ISO Top (ISO-5210)

Plunger -Needle Valve, Body: GGG50 (EN-GJS-500-7), Face to Face acc. EN 558-1 Series 15 (F5) up to DN450. Above DN500-DN1200: 1.5 * DN, Flanges acc. EN 1092-2 RF, Piston: SS-304-A2 (ASTM A351 GR CF8), Connecting Rod: SS-304-A2 (ASTM A351 GR CF8), Crank: SS-304-A2 (ASTM A351 GR CF8), Shaft: F51 Duplex 2205 Stainless Steel (22% Cr - SS ASTM A182 GR F51), Retaining Ring: SS-304-A2 (ASTM A351 GR CF8), Seat Sealing: EPDM (WRAS-DVGW W-270), Piston Guide: Bronze Overlay, Shaft Bushing: Bronze, Cap screws: A4-70 (SS-316), Vent Plug: SS-304-A2, Eye Bolt: C15. Valve Test as per EN-12266-1, Coating: Fusion Bonded Epoxy Coating RAL-5005 (WRAS-DVGW W-270), min 250 microns.
Price: 13,011.68 €
Forecasted: 0
Please contact us for updated Stock Availability
[PLUVA-15-0500-E10-A2A2ST02] Model PLUVA Plunger Valve, DN500-PN10, EPDM. Operation: AUMA Gearbox with Handwheel & ISO Top (ISO-5210)

Model PLUVA Plunger Valve, DN500-PN10, EPDM. Operation: AUMA Gearbox with Handwheel & ISO Top (ISO-5210)

Plunger -Needle Valve, Body: GGG50 (EN-GJS-500-7), Face to Face acc. EN 558-1 Series 15 (F5) up to DN450. Above DN500-DN1200: 1.5 * DN, Flanges acc. EN 1092-2 RF, Piston: SS-304-A2 (ASTM A351 GR CF8), Connecting Rod: SS-304-A2 (ASTM A351 GR CF8), Crank: SS-304-A2 (ASTM A351 GR CF8), Shaft: F51 Duplex 2205 Stainless Steel (22% Cr - SS ASTM A182 GR F51), Retaining Ring: SS-304-A2 (ASTM A351 GR CF8), Seat Sealing: EPDM (WRAS-DVGW W-270), Piston Guide: Bronze Overlay, Shaft Bushing: Bronze, Cap screws: A4-70 (SS-316), Vent Plug: SS-304-A2, Eye Bolt: C15. Valve Test as per EN-12266-1, Coating: Fusion Bonded Epoxy Coating RAL-5005 (WRAS-DVGW W-270), min 250 microns.
Price: 18,402.47 €
Forecasted: 0
Please contact us for updated Stock Availability
[PLUVA-15-0600-E10-A2A2ST02] Model PLUVA Plunger Valve, DN600-PN10, EPDM. Operation: AUMA Gearbox with Handwheel & ISO Top (ISO-5210)

Model PLUVA Plunger Valve, DN600-PN10, EPDM. Operation: AUMA Gearbox with Handwheel & ISO Top (ISO-5210)

Plunger -Needle Valve, Body: GGG50 (EN-GJS-500-7), Face to Face acc. EN 558-1 Series 15 (F5) up to DN450. Above DN500-DN1200: 1.5 * DN, Flanges acc. EN 1092-2 RF, Piston: SS-304-A2 (ASTM A351 GR CF8), Connecting Rod: SS-304-A2 (ASTM A351 GR CF8), Crank: SS-304-A2 (ASTM A351 GR CF8), Shaft: F51 Duplex 2205 Stainless Steel (22% Cr - SS ASTM A182 GR F51), Retaining Ring: SS-304-A2 (ASTM A351 GR CF8), Seat Sealing: EPDM (WRAS-DVGW W-270), Piston Guide: Bronze Overlay, Shaft Bushing: Bronze, Cap screws: A4-70 (SS-316), Vent Plug: SS-304-A2, Eye Bolt: C15. Valve Test as per EN-12266-1, Coating: Fusion Bonded Epoxy Coating RAL-5005 (WRAS-DVGW W-270), min 250 microns.
Price: 29,496.89 €
Forecasted: 0
Please contact us for updated Stock Availability
[PLUVA-15-0700-E10-A2A2ST02] Model PLUVA Plunger Valve, DN700-PN10, EPDM. Operation: AUMA Gearbox with Handwheel & ISO Top (ISO-5210)

Model PLUVA Plunger Valve, DN700-PN10, EPDM. Operation: AUMA Gearbox with Handwheel & ISO Top (ISO-5210)

Plunger -Needle Valve, Body: GGG50 (EN-GJS-500-7), Face to Face acc. EN 558-1 Series 15 (F5) up to DN450. Above DN500-DN1200: 1.5 * DN, Flanges acc. EN 1092-2 RF, Piston: SS-304-A2 (ASTM A351 GR CF8), Connecting Rod: SS-304-A2 (ASTM A351 GR CF8), Crank: SS-304-A2 (ASTM A351 GR CF8), Shaft: F51 Duplex 2205 Stainless Steel (22% Cr - SS ASTM A182 GR F51), Retaining Ring: SS-304-A2 (ASTM A351 GR CF8), Seat Sealing: EPDM (WRAS-DVGW W-270), Piston Guide: Bronze Overlay, Shaft Bushing: Bronze, Cap screws: A4-70 (SS-316), Vent Plug: SS-304-A2, Eye Bolt: C15. Valve Test as per EN-12266-1, Coating: Fusion Bonded Epoxy Coating RAL-5005 (WRAS-DVGW W-270), min 250 microns.
Price: 41,401.54 €
Forecasted: 0
Please contact us for updated Stock Availability
