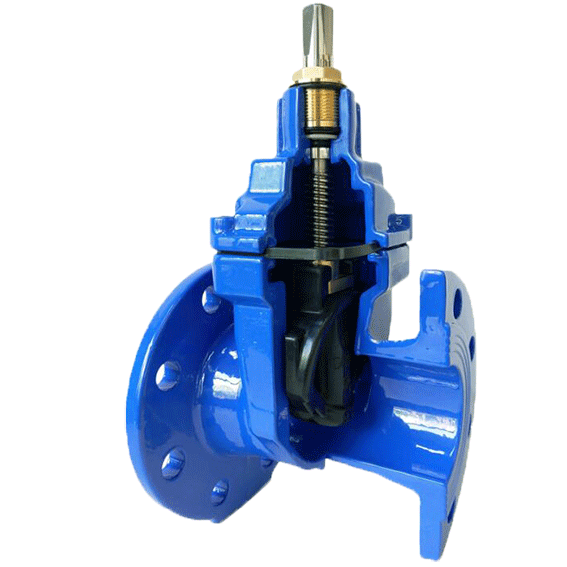

[RSGV-14-0040-E16-42A2ST09] Model RSGV F4 Gate Valve, DN40-PN10/16, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN40-PN10/16, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
57.81 €
[RSGV-14-0050-E16-42A2ST09] Model RSGV F4 Gate Valve, DN50-PN10/16, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN50-PN10/16, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
58.88 €
[WKGV-20-0050-N10-42A2ST09] Model W-KGV Knife Gate Valve, DN50-PN10, Knife A2-SS304. Operation: Handwheel

Model W-KGV Knife Gate Valve, DN50-PN10, Knife A2-SS304. Operation: Handwheel

Knife Gate Valve, non-rising stem, (Semi) LUG type, face to face: EN 558-1 Series 20, Spindle: AISI-420/EN 1.4021 (X20Cr13), Body: GGG40- EN-GJS 400-15, Sealing: NBR , Stem nut: Alubronze, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. Operation: with Handwheel
227.29 €
[WKGV-20-0065-N10-42A2ST09] Model W-KGV Knife Gate Valve, DN65-PN10, Knife A2-SS304. Operation: Handwheel

Model W-KGV Knife Gate Valve, DN65-PN10, Knife A2-SS304. Operation: Handwheel

Knife Gate Valve, non-rising stem, (Semi) LUG type, face to face: EN 558-1 Series 20, Spindle: AISI-420/EN 1.4021 (X20Cr13), Body: GGG40- EN-GJS 400-15, Sealing: NBR , Stem nut: Alubronze, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. Operation: with Handwheel
246.01 €
[WKGV-20-0080-N10-42A2ST09] Model W-KGV Knife Gate Valve, DN80-PN10, Knife A2-SS304. Operation: Handwheel

Model W-KGV Knife Gate Valve, DN80-PN10, Knife A2-SS304. Operation: Handwheel

Knife Gate Valve, non-rising stem, (Semi) LUG type, face to face: EN 558-1 Series 20, Spindle: AISI-420/EN 1.4021 (X20Cr13), Body: GGG40- EN-GJS 400-15, Sealing: NBR , Stem nut: Alubronze, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. Operation: with Handwheel
286.12 €

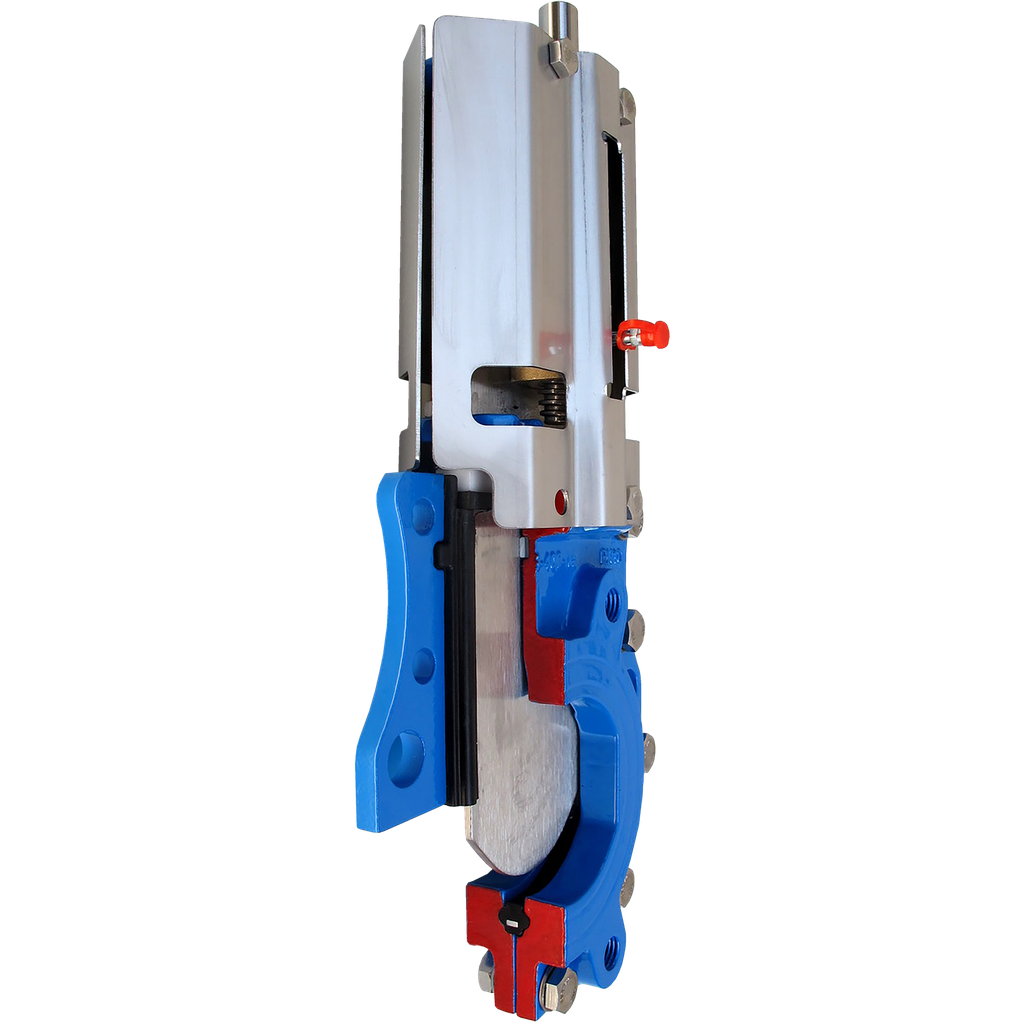

[WKGV-20-0100-N10-42A2ST09] Model W-KGV Knife Gate Valve, DN100-PN10, Knife A2-SS304. Operation: Handwheel

Model W-KGV Knife Gate Valve, DN100-PN10, Knife A2-SS304. Operation: Handwheel

Knife Gate Valve, non-rising stem, (Semi) LUG type, face to face: EN 558-1 Series 20, Spindle: AISI-420/EN 1.4021 (X20Cr13), Body: GGG40- EN-GJS 400-15, Sealing: NBR , Stem nut: Alubronze, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. Operation: with Handwheel
334.25 €
[WKGV-20-0125-N10-42A2ST09] Model W-KGV Knife Gate Valve, DN125-PN10, Knife A2-SS304. Operation: Handwheel

Model W-KGV Knife Gate Valve, DN125-PN10, Knife A2-SS304. Operation: Handwheel

Knife Gate Valve, non-rising stem, (Semi) LUG type, face to face: EN 558-1 Series 20, Spindle: AISI-420/EN 1.4021 (X20Cr13), Body: GGG40- EN-GJS 400-15, Sealing: NBR , Stem nut: Alubronze, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. Operation: with Handwheel
406.45 €
[WKGV-20-0150-N10-42A4ST09] Model W-KGV Knife Gate Valve, DN150-PN10, Knife A4-SS316 (1.4401). Operation: Handwheel

Model W-KGV Knife Gate Valve, DN150-PN10, Knife A4-SS316 (1.4401). Operation: Handwheel

Knife Gate Valve, non-rising stem, (Semi) LUG type, face to face: EN 558-1 Series 20, Spindle: AISI-420/EN 1.4021 (X20Cr13), Body: GGG40- EN-GJS 400-15, Sealing: NBR , Stem nut: Alubronze, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. Operation: with Handwheel
636.41 €
[WKGV-20-0200-N10-42A2ST09] Model W-KGV Knife Gate Valve, DN200-PN10, Knife A2-SS304. Operation: Handwheel

Model W-KGV Knife Gate Valve, DN200-PN10, Knife A2-SS304. Operation: Handwheel

Knife Gate Valve, non-rising stem, (Semi) LUG type, face to face: EN 558-1 Series 20, Spindle: AISI-420/EN 1.4021 (X20Cr13), Body: GGG40- EN-GJS 400-15, Sealing: NBR , Stem nut: Alubronze, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. Operation: with Handwheel
647.11 €
[WKGV-20-0250-N10-42A2ST09] Model W-KGV Knife Gate Valve, DN250-PN10, Knife A2-SS304. Operation: Handwheel

Model W-KGV Knife Gate Valve, DN250-PN10, Knife A2-SS304. Operation: Handwheel

Knife Gate Valve, non-rising stem, (Semi) LUG type, face to face: EN 558-1 Series 20, Spindle: AISI-420/EN 1.4021 (X20Cr13), Body: GGG40- EN-GJS 400-15, Sealing: NBR , Stem nut: Alubronze, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. Operation: with Handwheel
951.94 €
[WKGV-20-0300-N10-42A2ST09] Model W-KGV Knife Gate Valve, DN300-PN10, Knife A2-SS304. Operation: Handwheel

Model W-KGV Knife Gate Valve, DN300-PN10, Knife A2-SS304. Operation: Handwheel

Knife Gate Valve, non-rising stem, (Semi) LUG type, face to face: EN 558-1 Series 20, Spindle: AISI-420/EN 1.4021 (X20Cr13), Body: GGG40- EN-GJS 400-15, Sealing: NBR , Stem nut: Alubronze, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. Operation: with Handwheel
1,347.70 €
[WKGV-20-0350-N10-42A2ST09] Model W-KGV Knife Gate Valve, DN350-PN10, Knife A2-SS304. Operation: Handwheel

Model W-KGV Knife Gate Valve, DN350-PN10, Knife A2-SS304. Operation: Handwheel

Knife Gate Valve, non-rising stem, (Semi) LUG type, face to face: EN 558-1 Series 20, Spindle: AISI-420/EN 1.4021 (X20Cr13), Body: GGG40- EN-GJS 400-15, Sealing: NBR , Stem nut: Alubronze, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. Operation: with Handwheel
2,321.03 €
[WKGV-20-0400-N10-42A2ST09] Model W-KGV Knife Gate Valve, DN400-PN10, Knife A2-SS304. Operation: Handwheel

Model W-KGV Knife Gate Valve, DN400-PN10, Knife A2-SS304. Operation: Handwheel

Knife Gate Valve, non-rising stem, (Semi) LUG type, face to face: EN 558-1 Series 20, Spindle: AISI-420/EN 1.4021 (X20Cr13), Body: GGG40- EN-GJS 400-15, Sealing: NBR , Stem nut: Alubronze, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. Operation: with Handwheel
3,101.84 €
[WKGV-20-0500-N10-42A2ST09] Model W-KGV Knife Gate Valve, DN500-PN10, Knife A2-SS304. Operation: Handwheel

Model W-KGV Knife Gate Valve, DN500-PN10, Knife A2-SS304. Operation: Handwheel

Knife Gate Valve, non-rising stem, (Semi) LUG type, face to face: EN 558-1 Series 20, Spindle: AISI-420/EN 1.4021 (X20Cr13), Body: GGG40- EN-GJS 400-15, Sealing: NBR , Stem nut: Alubronze, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. Operation: with Handwheel
4,585.91 €
[WKGV-20-0600-N10-42A2ST09] Model W-KGV Knife Gate Valve, DN600-PN10, Knife A2-SS304. Operation: Handwheel

Model W-KGV Knife Gate Valve, DN600-PN10, Knife A2-SS304. Operation: Handwheel

Knife Gate Valve, non-rising stem, (Semi) LUG type, face to face: EN 558-1 Series 20, Spindle: AISI-420/EN 1.4021 (X20Cr13), Body: GGG40- EN-GJS 400-15, Sealing: NBR , Stem nut: Alubronze, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. Operation: with Handwheel
5,695.62 €
[WKGV-20-0050-N10-42A4ST09] Model W-KGV Knife Gate Valve, DN50-PN10, Knife A4-SS316 (1.4401). Operation: Handwheel

Model W-KGV Knife Gate Valve, DN50-PN10, Knife A4-SS316 (1.4401). Operation: Handwheel

Knife Gate Valve, non-rising stem, (Semi) LUG type, face to face: EN 558-1 Series 20, Spindle: AISI-420/EN 1.4021 (X20Cr13), Body: GGG40- EN-GJS 400-15, Sealing: NBR , Stem nut: Alubronze, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. Operation: with Handwheel
270.07 €
[WKGV-20-0065-N10-42A4ST09] Model W-KGV Knife Gate Valve, DN65-PN10, Knife A4-SS316 (1.4401). Operation: Handwheel

Model W-KGV Knife Gate Valve, DN65-PN10, Knife A4-SS316 (1.4401). Operation: Handwheel

Knife Gate Valve, non-rising stem, (Semi) LUG type, face to face: EN 558-1 Series 20, Spindle: AISI-420/EN 1.4021 (X20Cr13), Body: GGG40- EN-GJS 400-15, Sealing: NBR , Stem nut: Alubronze, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. Operation: with Handwheel
304.84 €
[WKGV-20-0080-N10-42A4ST09] Model W-KGV Knife Gate Valve, DN80-PN10, Knife A4-SS316 (1.4401). Operation: Handwheel

Model W-KGV Knife Gate Valve, DN80-PN10, Knife A4-SS316 (1.4401). Operation: Handwheel

Knife Gate Valve, non-rising stem, (Semi) LUG type, face to face: EN 558-1 Series 20, Spindle: AISI-420/EN 1.4021 (X20Cr13), Body: GGG40- EN-GJS 400-15, Sealing: NBR , Stem nut: Alubronze, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. Operation: with Handwheel
344.95 €
[WKGV-20-0100-N10-42A4ST09] Model W-KGV Knife Gate Valve, DN100-PN10, Knife A4-SS316 (1.4401). Operation: Handwheel

Model W-KGV Knife Gate Valve, DN100-PN10, Knife A4-SS316 (1.4401). Operation: Handwheel

Knife Gate Valve, non-rising stem, (Semi) LUG type, face to face: EN 558-1 Series 20, Spindle: AISI-420/EN 1.4021 (X20Cr13), Body: GGG40- EN-GJS 400-15, Sealing: NBR , Stem nut: Alubronze, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. Operation: with Handwheel
419.82 €
[WKGV-20-0125-N10-42A4ST09] Model W-KGV Knife Gate Valve, DN125-PN10, Knife A4-SS316 (1.4401). Operation: Handwheel

Model W-KGV Knife Gate Valve, DN125-PN10, Knife A4-SS316 (1.4401). Operation: Handwheel

Knife Gate Valve, non-rising stem, (Semi) LUG type, face to face: EN 558-1 Series 20, Spindle: AISI-420/EN 1.4021 (X20Cr13), Body: GGG40- EN-GJS 400-15, Sealing: NBR , Stem nut: Alubronze, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. Operation: with Handwheel
524.10 €
