Gate Valves

Ideal for on/off control in high-pressure systems.
Sort By Sort By: Featured
[RSGV-14-0040-E16-42A2ST09] Model RSGV F4 Gate Valve, DN40-PN10/16, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN40-PN10/16, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
57.81 €

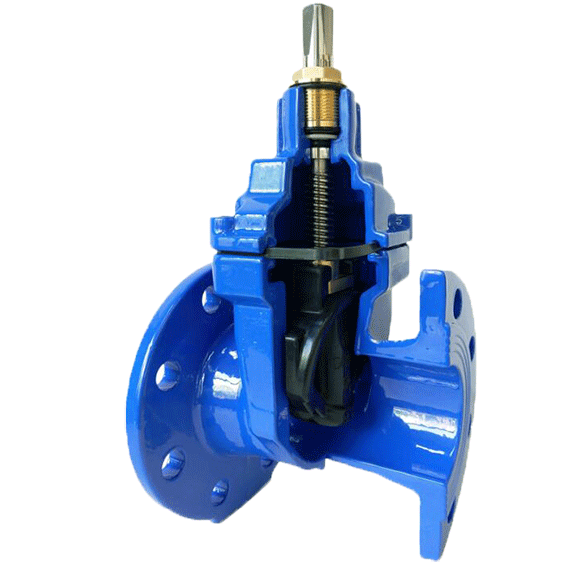

[RSGV-14-0050-E16-42A2ST09] Model RSGV F4 Gate Valve, DN50-PN10/16, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN50-PN10/16, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
58.88 €
[RSGV-14-0065-E16-42A2ST09] Model RSGV F4 Gate Valve, DN65-PN10/16, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN65-PN10/16, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
72.25 €
[RSGV-14-0080-E16-42A2ST09] Model RSGV F4 Gate Valve, DN80-PN10/16, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN80-PN10/16, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
84.85 €
[RSGV-14-0100-E16-42A2ST09] Model RSGV F4 Gate Valve, DN100-PN10/16, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN100-PN10/16, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
112.07 €
[RSGV-14-0125-E16-42A2ST09] Model RSGV F4 Gate Valve, DN125-PN10/16, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN125-PN10/16, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
141.53 €
[RSGV-14-0150-E16-42A2ST09] Model RSGV F4 Gate Valve, DN150-PN10/16, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN150-PN10/16, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
185.87 €
[RSGV-14-0200-E10-42A2ST09] Model RSGV F4 Gate Valve, DN200-PN10, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN200-PN10, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
298.39 €
[RSGV-14-0250-E10-42A2ST09] Model RSGV F4 Gate Valve, DN250-PN10, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN250-PN10, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
466.40 €
[RSGV-14-0300-E10-42A2ST09] Model RSGV F4 Gate Valve, DN300-PN10, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN300-PN10, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
602.51 €
[RSGV-14-0300-E16-42A2ST09] Model RSGV F4 Gate Valve, DN300-PN16, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN300-PN16, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
602.51 €
[RSGV-14-0250-E16-42A2ST09] Model RSGV F4 Gate Valve, DN250-PN16, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN250-PN16, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
466.40 €
[RSGV-14-0200-E16-42A2ST09] Model RSGV F4 Gate Valve, DN200-PN16, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN200-PN16, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
298.39 €
[RSGV-14-0350-E10-42A2ST09] Model RSGV F4 Gate Valve, DN350-PN10, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN350-PN10, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
1,206.38 €
[RSGV-14-0400-E10-42A2ST09] Model RSGV F4 Gate Valve, DN400-PN10, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN400-PN10, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
1,469.50 €
[RSGV-14-0450-E10-42A2ST09] Model RSGV F4 Gate Valve, DN450-PN10, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN450-PN10, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
2,163.35 €
[RSGV-14-0500-E10-42A2ST09] Model RSGV F4 Gate Valve, DN500-PN10, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN500-PN10, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
2,701.49 €
[RSGV-14-0600-E10-42A2ST09] Model RSGV F4 Gate Valve, DN600-PN10, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN600-PN10, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
4,250.80 €
[RSGV-14-0600-E16-42A2ST09] Model RSGV F4 Gate Valve, DN600-PN16, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN600-PN16, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
4,250.80 €

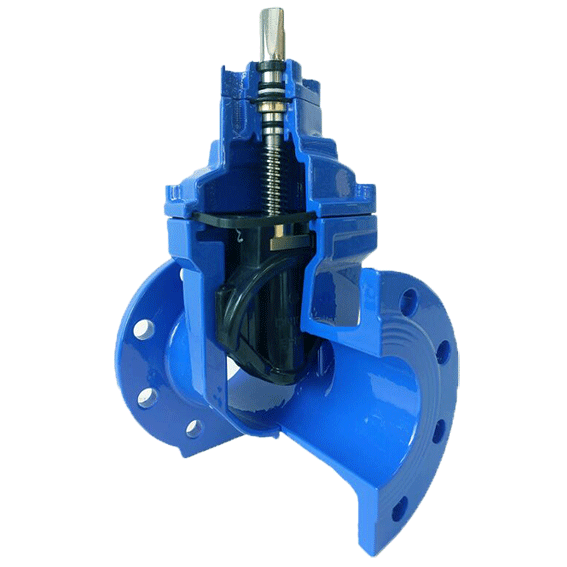

[RSGV-14-0350-E16-42A2ST09] Model RSGV F4 Gate Valve, DN350-PN16, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN350-PN16, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
1,206.38 €
