Check Valves

Prevent backflow and ensure system integrity.
Sort By Sort By: Featured
[BCV-48-0450-N10-xxA2ST1] Model BCV Ball Check Valve, DN450, PN10, NBR, Flanged

Model BCV Ball Check Valve, DN450, PN10, NBR, Flanged

Double flanged type, Face to Face acc. to EN 558-1 series 48 (F6), Body, cover and flap : GGG50, Ball with NBR rubber, Bolts, nuts and washers: stainless steel A2-304, Coating: fushion bonded epoxy powder coated (min 250μm) RAL-5015. Including A2 Drain Plug
3,676.75 €
[BCV-48-0500-N10-xxA2ST1] Model BCV Ball Check Valve, DN500, PN10, NBR, Flanged

Model BCV Ball Check Valve, DN500, PN10, NBR, Flanged

Double flanged type, Face to Face acc. to EN 558-1 series 48 (F6), Body, cover and flap : GGG50, Ball with NBR rubber, Bolts, nuts and washers: stainless steel A2-304, Coating: fushion bonded epoxy powder coated (min 250μm) RAL-5015. Including A2 Drain Plug
4,541.87 €
[BCV-48-0600-N10-xxA2ST1] Model BCV Ball Check Valve, DN600, PN10, NBR, Flanged

Model BCV Ball Check Valve, DN600, PN10, NBR, Flanged

Double flanged type, Face to Face acc. to EN 558-1 series 48 (F6), Body, cover and flap : GGG50, Ball with NBR rubber, Bolts, nuts and washers: stainless steel A2-304, Coating: fushion bonded epoxy powder coated (min 250μm) RAL-5015. Including A2 Drain Plug
8,002.35 €
[BCV-48-0250-N16-xxA2ST1] Model BCV Ball Check Valve, DN250, PN16, NBR, Flanged

Model BCV Ball Check Valve, DN250, PN16, NBR, Flanged

Double flanged type, Face to Face acc. to EN 558-1 series 48 (F6), Body, cover and flap : GGG50, Ball with NBR rubber, Bolts, nuts and washers: stainless steel A2-304, Coating: fushion bonded epoxy powder coated (min 250μm) RAL-5015. Including A2 Drain Plug
806.26 €
[BCV-48-0300-N16-xxA2ST1] Model BCV Ball Check Valve, DN300, PN16, NBR, Flanged

Model BCV Ball Check Valve, DN300, PN16, NBR, Flanged

Double flanged type, Face to Face acc. to EN 558-1 series 48 (F6), Body, cover and flap : GGG50, Ball with NBR rubber, Bolts, nuts and washers: stainless steel A2-304, Coating: fushion bonded epoxy powder coated (min 250μm) RAL-5015. Including A2 Drain Plug
1,267.16 €
[BCV-48-0350-N16-xxA2ST1] Model BCV Ball Check Valve, DN350, PN16, NBR, Flanged

Model BCV Ball Check Valve, DN350, PN16, NBR, Flanged

Double flanged type, Face to Face acc. to EN 558-1 series 48 (F6), Body, cover and flap : GGG50, Ball with NBR rubber, Bolts, nuts and washers: stainless steel A2-304, Coating: fushion bonded epoxy powder coated (min 250μm) RAL-5015. Including A2 Drain Plug
1,708.69 €
[BCV-48-0400-N16-xxA2ST1] Model BCV Ball Check Valve, DN400, PN16, NBR, Flanged

Model BCV Ball Check Valve, DN400, PN16, NBR, Flanged

Double flanged type, Face to Face acc. to EN 558-1 series 48 (F6), Body, cover and flap : GGG50, Ball with NBR rubber, Bolts, nuts and washers: stainless steel A2-304, Coating: fushion bonded epoxy powder coated (min 250μm) RAL-5015. Including A2 Drain Plug
2,292.82 €
[BCV-48-0450-N16-xxA2ST1] Model BCV Ball Check Valve, DN450, PN16, NBR, Flanged

Model BCV Ball Check Valve, DN450, PN16, NBR, Flanged

Double flanged type, Face to Face acc. to EN 558-1 series 48 (F6), Body, cover and flap : GGG50, Ball with NBR rubber, Bolts, nuts and washers: stainless steel A2-304, Coating: fushion bonded epoxy powder coated (min 250μm) RAL-5015. Including A2 Drain Plug
3,806.52 €
[BCV-48-0500-N16-xxA2ST1] Model BCV Ball Check Valve, DN500, PN16, NBR, Flanged

Model BCV Ball Check Valve, DN500, PN16, NBR, Flanged

Double flanged type, Face to Face acc. to EN 558-1 series 48 (F6), Body, cover and flap : GGG50, Ball with NBR rubber, Bolts, nuts and washers: stainless steel A2-304, Coating: fushion bonded epoxy powder coated (min 250μm) RAL-5015. Including A2 Drain Plug
4,672.01 €
[BCV-48-0600-N16-xxA2ST1] Model BCV Ball Check Valve, DN600, PN16, NBR, Flanged

Model BCV Ball Check Valve, DN600, PN16, NBR, Flanged

Double flanged type, Face to Face acc. to EN 558-1 series 48 (F6), Body, cover and flap : GGG50, Ball with NBR rubber, Bolts, nuts and washers: stainless steel A2-304, Coating: fushion bonded epoxy powder coated (min 250μm) RAL-5015. Including A2 Drain Plug
8,218.75 €
[TTSCV-14-0250-E10-42A2STHD] DN250-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

DN250-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

Tilting Type Swing Check Valve with Hydraulic Damping, Lever and Weight, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 14 (F4), Body: GGG50 / EN-GJS-500-7, Spindle: AISI-420/EN 1.4021 (X20Cr13), Disc Sealing: EPDM, Body Sealing: welded Stainless Steel A2-AISI-304 (EN-1.4301), Bolts: stainless steel A2-70/SS304. Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
2,730.00 €

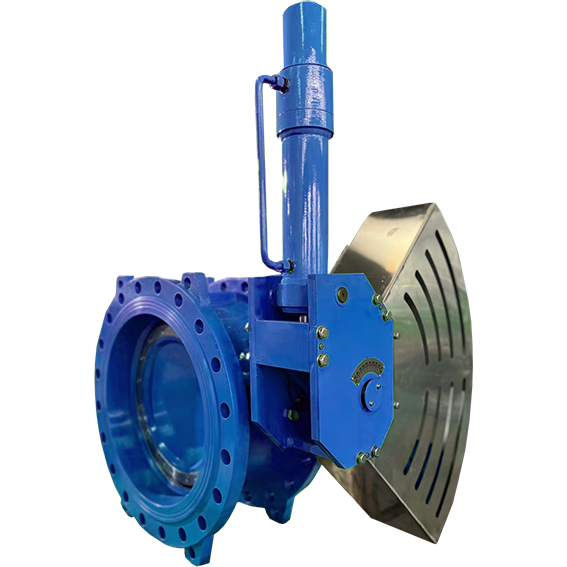

[TTSCV-14-0300-E10-42A2STHD] DN300-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

DN300-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

Tilting Type Swing Check Valve with Hydraulic Damping, Lever and Weight, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 14 (F4), Body: GGG50 / EN-GJS-500-7, Spindle: AISI-420/EN 1.4021 (X20Cr13), Disc Sealing: EPDM, Body Sealing: welded Stainless Steel A2-AISI-304 (EN-1.4301), Bolts: stainless steel A2-70/SS304. Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
2,966.00 €
[TTSCV-14-0350-E10-42A2STHD] DN350-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

DN350-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

Tilting Type Swing Check Valve with Hydraulic Damping, Lever and Weight, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 14 (F4), Body: GGG50 / EN-GJS-500-7, Spindle: AISI-420/EN 1.4021 (X20Cr13), Disc Sealing: EPDM, Body Sealing: welded Stainless Steel A2-AISI-304 (EN-1.4301), Bolts: stainless steel A2-70/SS304. Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
3,198.00 €
[TTSCV-14-0400-E10-42A2STHD] DN400-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

DN400-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

Tilting Type Swing Check Valve with Hydraulic Damping, Lever and Weight, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 14 (F4), Body: GGG50 / EN-GJS-500-7, Spindle: AISI-420/EN 1.4021 (X20Cr13), Disc Sealing: EPDM, Body Sealing: welded Stainless Steel A2-AISI-304 (EN-1.4301), Bolts: stainless steel A2-70/SS304. Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
3,869.00 €
[TTSCV-14-0450-E10-42A2STHD] DN450-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

DN450-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

Tilting Type Swing Check Valve with Hydraulic Damping, Lever and Weight, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 14 (F4), Body: GGG50 / EN-GJS-500-7, Spindle: AISI-420/EN 1.4021 (X20Cr13), Disc Sealing: EPDM, Body Sealing: welded Stainless Steel A2-AISI-304 (EN-1.4301), Bolts: stainless steel A2-70/SS304. Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
4,193.00 €
[TTSCV-14-0500-E10-42A2STHD] DN500-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

DN500-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

Tilting Type Swing Check Valve with Hydraulic Damping, Lever and Weight, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 14 (F4), Body: GGG50 / EN-GJS-500-7, Spindle: AISI-420/EN 1.4021 (X20Cr13), Disc Sealing: EPDM, Body Sealing: welded Stainless Steel A2-AISI-304 (EN-1.4301), Bolts: stainless steel A2-70/SS304. Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
4,696.00 €
[TTSCV-14-0600-E10-42A2STHD] DN600-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

DN600-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

Tilting Type Swing Check Valve with Hydraulic Damping, Lever and Weight, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 14 (F4), Body: GGG50 / EN-GJS-500-7, Spindle: AISI-420/EN 1.4021 (X20Cr13), Disc Sealing: EPDM, Body Sealing: welded Stainless Steel A2-AISI-304 (EN-1.4301), Bolts: stainless steel A2-70/SS304. Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
5,899.00 €
[TTSCV-14-0200-E10-42A2STHD] DN200-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

DN200-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

Tilting Type Swing Check Valve with Hydraulic Damping, Lever and Weight, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 14 (F4), Body: GGG50 / EN-GJS-500-7, Spindle: AISI-420/EN 1.4021 (X20Cr13), Disc Sealing: EPDM, Body Sealing: welded Stainless Steel A2-AISI-304 (EN-1.4301), Bolts: stainless steel A2-70/SS304. Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
2,730.00 €
