Resilient Seated | Rheintal Armaturen

Model RSGV F4 Gate Valve, SS-316, DN350-PN16, NBR with Handwheel

Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: A4-SS316 (1.4401), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.

1,221.45 €

Model RSGV F4 Gate Valve, SS-316, DN200-PN16, NBR with Handwheel

Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: A4-SS316 (1.4404), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.

316.29 €

Model RSGV F4 Gate Valve, SS-316, DN250-PN16, NBR with Handwheel

Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: A4-SS316 (1.4404), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.

493.00 €

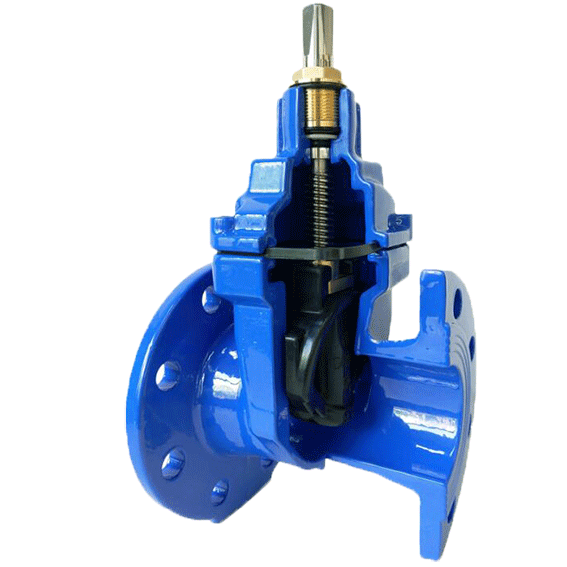

Model RSGV F4 Gate Valve, SS-316, DN300-PN16, NBR with Handwheel

Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: A4-SS316 (1.4404), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.

627.48 €

Model RSGV F4 Gate Valve, DN900-PN10, EPDM with Gearbox & Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.

14,199.00 €

Model RSGV F4 Gate Valve, DN900-PN16, EPDM with Gearbox & Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.

14,199.00 €

Model RSGV F4 Gate Valve, DN1000-PN10, EPDM with Gearbox & Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.

18,000.00 €

Model RSGV F4 Gate Valve, DN1000-PN16, EPDM with Gearbox & Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.

18,000.00 €

Model RSGV F4 Gate Valve, SS-316, DN700-PN10, NBR with Gearbox & Handwheel

Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: A4-SS316 (1.4401), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.

9,569.00 €

Model RSGV F4 Gate Valve, SS-316, DN800-PN10, NBR with Gearbox & Handwheel

Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: A4-SS316 (1.4401), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.

11,212.00 €

Model RSGV F4 Gate Valve, SS-316, DN900-PN10, NBR with Gearbox & Handwheel

Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: A4-SS316 (1.4401), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.

14,199.00 €

Model RSGV F4 Gate Valve, SS-316, DN1000-PN10, NBR with Gearbox & Handwheel

Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: A4-SS316 (1.4401), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.

18,000.00 €

Model RSGV F4 Gate Valve, DN1200-PN10, EPDM with Gearbox & Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.

26,338.00 €

Model RSGV F4 Gate Valve, DN1200-PN16, EPDM with Gearbox & Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.

26,338.00 €

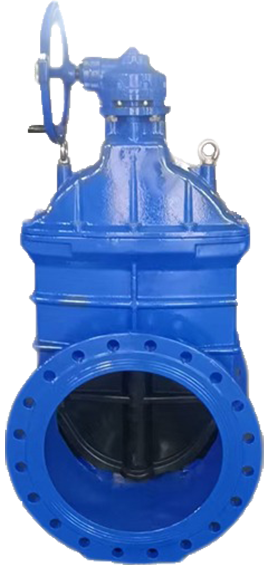

Model RSGV F4 Gate Valve, DN1200-PN10, NBR with Gearbox & Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.

26,338.00 €

Model RSGV F4 Gate Valve, DN1200-PN16, NBR with Gearbox & Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.

26,338.00 €

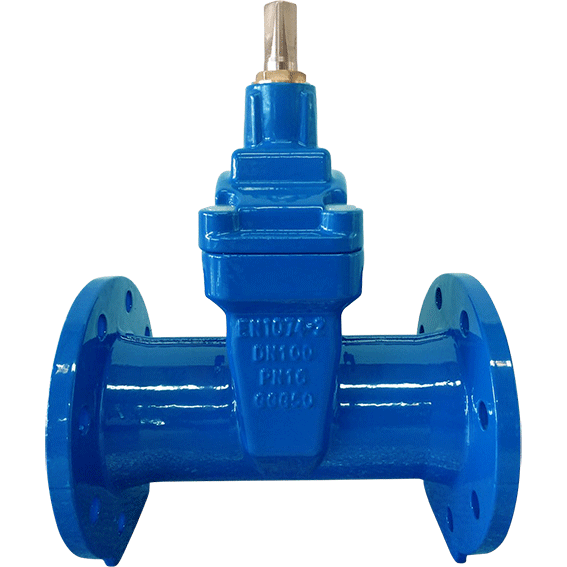

Model RSGV F5 Gate Valve, DN40-PN10/16, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 15 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel

59.34 €

Model RSGV F5 Gate Valve, DN40-PN10/16, EPDM with Handwheel (copy)

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 15 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel

59.34 €

Model RSGV F5 Gate Valve, DN50-PN10/16, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 15 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel

61.02 €

Model RSGV F5 Gate Valve, DN65-PN10/16, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 15 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel

79.31 €
