Gate Valves

Ideal for on/off control in high-pressure systems.
Sort By Sort By: Featured
[RSGV-14-0200-E25-42A2ST03] Model RSGV F4 Gate Valve, DN200-PN25, EPDM with ISO TOP (F10-Ø20mm)

Model RSGV F4 Gate Valve, DN200-PN25, EPDM with ISO TOP (F10-Ø20mm)

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
439.78 €
[RSGV-14-0250-E25-42A2ST03] Model RSGV F4 Gate Valve, DN250-PN25, EPDM with ISO TOP (F14-Ø30mm)

Model RSGV F4 Gate Valve, DN250-PN25, EPDM with ISO TOP (F14-Ø30mm)

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
701.22 €

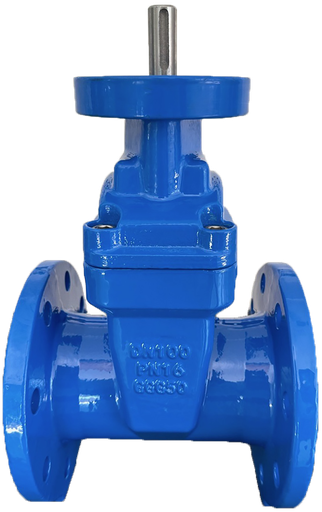

[RSGV-14-0300-E25-42A2ST03] Model RSGV F4 Gate Valve, DN300-PN25, EPDM with ISO TOP (F14-Ø30mm)

Model RSGV F4 Gate Valve, DN300-PN25, EPDM with ISO TOP (F14-Ø30mm)

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
895.28 €
[RSGV-14-0040-N16-42A2ST09] Model RSGV F4 Gate Valve, DN40-PN10/16, NBR with Handwheel

Model RSGV F4 Gate Valve, DN40-PN10/16, NBR with Handwheel

Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.
56.95 €
[RSGV-14-0050-N16-42A2ST09] Model RSGV F4 Gate Valve, DN50-PN10/16, NBR with Handwheel

Model RSGV F4 Gate Valve, DN50-PN10/16, NBR with Handwheel

Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.
58.02 €
[RSGV-14-0065-N16-42A2ST09] Model RSGV F4 Gate Valve, DN65-PN10/16, NBR with Handwheel

Model RSGV F4 Gate Valve, DN65-PN10/16, NBR with Handwheel

Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.
71.23 €
[RSGV-14-0080-N16-42A2ST09] Model RSGV F4 Gate Valve, DN80-PN10/16, NBR with Handwheel

Model RSGV F4 Gate Valve, DN80-PN10/16, NBR with Handwheel

Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.
83.27 €
[RSGV-14-0100-N16-42A2ST09] Model RSGV F4 Gate Valve, DN100-PN10/16, NBR with Handwheel

Model RSGV F4 Gate Valve, DN100-PN10/16, NBR with Handwheel

Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.
109.74 €
[RSGV-14-0125-N16-42A2ST09] Model RSGV F4 Gate Valve, DN125-PN10/16, NBR with Handwheel

Model RSGV F4 Gate Valve, DN125-PN10/16, NBR with Handwheel

Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.
138.88 €

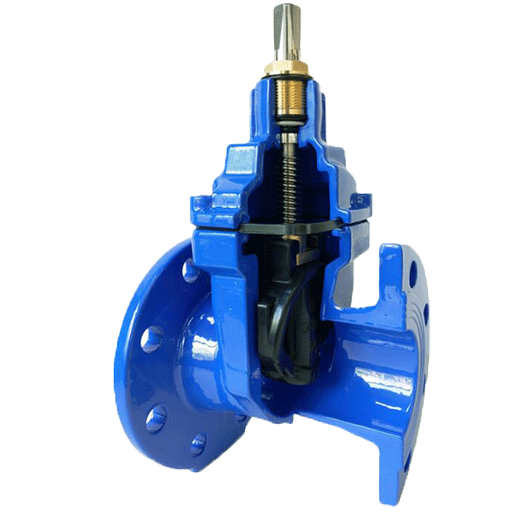

[RSGV-14-0150-N16-42A2ST09] Model RSGV F4 Gate Valve, DN150-PN10/16, NBR with Handwheel

Model RSGV F4 Gate Valve, DN150-PN10/16, NBR with Handwheel

Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.
182.14 €
[RSGV-14-0200-N10-42A2ST09] Model RSGV F4 Gate Valve, DN200-PN10, NBR with Handwheel

Model RSGV F4 Gate Valve, DN200-PN10, NBR with Handwheel

Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.
291.73 €
[RSGV-14-0250-N10-42A2ST09] Model RSGV F4 Gate Valve, DN250-PN10, NBR with Handwheel

Model RSGV F4 Gate Valve, DN250-PN10, NBR with Handwheel

Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.
457.00 €
[RSGV-14-0300-N10-42A2ST09] Model RSGV F4 Gate Valve, DN300-PN10, NBR with Handwheel

Model RSGV F4 Gate Valve, DN300-PN10, NBR with Handwheel

Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.
587.27 €
[RSGV-14-0300-N16-42A2ST09] Model RSGV F4 Gate Valve, DN300-PN16, NBR with Handwheel

Model RSGV F4 Gate Valve, DN300-PN16, NBR with Handwheel

Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.
587.27 €
[RSGV-14-0250-N16-42A2ST09] Model RSGV F4 Gate Valve, DN250-PN16, NBR with Handwheel

Model RSGV F4 Gate Valve, DN250-PN16, NBR with Handwheel

Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.
457.00 €
[RSGV-14-0200-N16-42A2ST09] Model RSGV F4 Gate Valve, DN200-PN16, NBR with Handwheel

Model RSGV F4 Gate Valve, DN200-PN16, NBR with Handwheel

Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.
291.73 €
[RSGV-14-0350-N10-42A2ST09] Model RSGV F4 Gate Valve, DN350-PN10, NBR with Handwheel

Model RSGV F4 Gate Valve, DN350-PN10, NBR with Handwheel

Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.
1,182.36 €
[RSGV-14-0350-N16-42A2ST09] Model RSGV F4 Gate Valve, DN350-PN16, NBR with Handwheel

Model RSGV F4 Gate Valve, DN350-PN16, NBR with Handwheel

Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.
1,182.36 €
[RSGV-14-0400-N16-42A2ST09] Model RSGV F4 Gate Valve, DN400-PN16, NBR with Handwheel

Model RSGV F4 Gate Valve, DN400-PN16, NBR with Handwheel

Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.
1,445.53 €

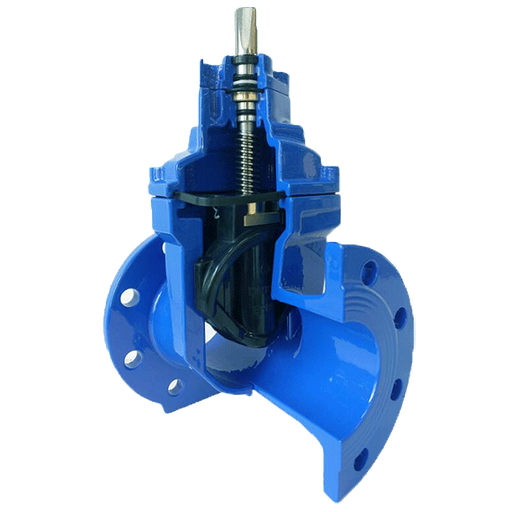

[RSGV-14-0400-N10-42A2ST09] Model RSGV F4 Gate Valve, DN400-PN10, NBR with Handwheel

Model RSGV F4 Gate Valve, DN400-PN10, NBR with Handwheel

Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.
1,445.53 €
