Gate Valves

Ideal for on/off control in high-pressure systems.
Sort By Sort By: Featured
[RSGV-14-0400-E16-42A2ST09] Model RSGV F4 Gate Valve, DN400-PN16, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN400-PN16, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
1,469.50 €
[RSGV-14-0450-E16-42A2ST09] Model RSGV F4 Gate Valve, DN450-PN16, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN450-PN16, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
2,163.35 €
[RSGV-14-0500-E16-42A2ST09] Model RSGV F4 Gate Valve, DN500-PN16, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN500-PN16, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
2,701.49 €
[RSGV-14-0700-E10-42A2ST02] Model RSGV F4 Gate Valve, DN700-PN10, EPDM with Gearbox & Handwheel

Model RSGV F4 Gate Valve, DN700-PN10, EPDM with Gearbox & Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
8,811.45 €
[RSGV-14-0800-E10-42A2ST02] Model RSGV F4 Gate Valve, DN800-PN10, EPDM with Gearbox & Handwheel

Model RSGV F4 Gate Valve, DN800-PN10, EPDM with Gearbox & Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
10,367.85 €
[RSGV-14-0800-E16-42A2ST02] Model RSGV F4 Gate Valve, DN800-PN16, EPDM with Gearbox & Handwheel

Model RSGV F4 Gate Valve, DN800-PN16, EPDM with Gearbox & Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
10,367.85 €
[RSGV-14-0700-E16-42A2ST02] Model RSGV F4 Gate Valve, DN700-PN16, EPDM with Gearbox & Handwheel

Model RSGV F4 Gate Valve, DN700-PN16, EPDM with Gearbox & Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
8,811.45 €
[RSGV-14-0040-E25-42A2ST09] Model RSGV F4 Gate Valve, DN40-PN25, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN40-PN25, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
81.53 €
[RSGV-14-0050-E25-42A2ST09] Model RSGV F4 Gate Valve, DN50-PN25, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN50-PN25, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
82.57 €
[RSGV-14-0065-E25-42A2ST09] Model RSGV F4 Gate Valve, DN65-PN25, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN65-PN25, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
101.37 €

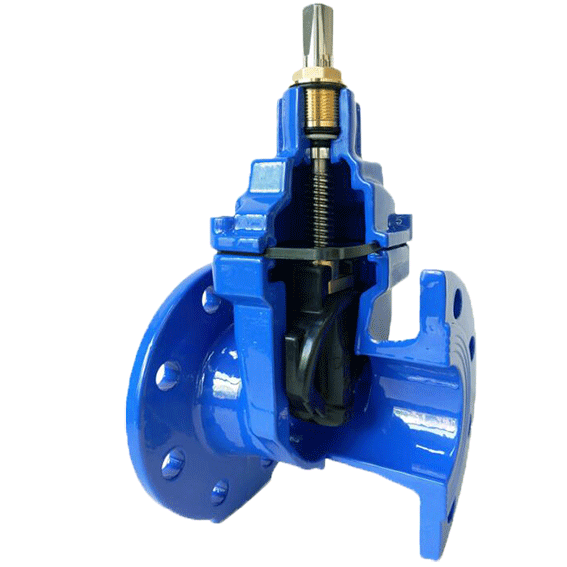

[RSGV-14-0080-E25-42A2ST09] Model RSGV F4 Gate Valve, DN80-PN25, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN80-PN25, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
118.78 €
[RSGV-14-0100-E25-42A2ST09] Model RSGV F4 Gate Valve, DN100-PN25, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN100-PN25, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
157.07 €
[RSGV-14-0125-E25-42A2ST09] Model RSGV F4 Gate Valve, DN125-PN25, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN125-PN25, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
198.14 €
[RSGV-14-0150-E25-42A2ST09] Model RSGV F4 Gate Valve, DN150-PN25, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN150-PN25, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
260.05 €
[RSGV-14-0200-E25-42A2ST09] Model RSGV F4 Gate Valve, DN200-PN25, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN200-PN25, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
417.01 €
[RSGV-14-0250-E25-42A2ST09] Model RSGV F4 Gate Valve, DN250-PN25, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN250-PN25, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
652.51 €
[RSGV-14-0300-E25-42A2ST09] Model RSGV F4 Gate Valve, DN300-PN25, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN300-PN25, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
846.56 €
[MSGV-15-0050-S16-42A2ST09] Model MSGV F5 - SS-304 Metal Seated Gate Valve, DN50-PN10/16 with Handwheel

Model MSGV F5 - SS-304 Metal Seated Gate Valve, DN50-PN10/16 with Handwheel

Metal Seated Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 15 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge & Body Sealing: Stainless Steel A2-AISI-304 (EN-1.4301), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
157.95 €
[MSGV-15-0065-S16-42A2ST09] Model MSGV F5 - SS-304 Metal Seated Gate Valve, DN65-PN10/16 with Handwheel

Model MSGV F5 - SS-304 Metal Seated Gate Valve, DN65-PN10/16 with Handwheel

Metal Seated Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 15 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge & Body Sealing: Stainless Steel A2-AISI-304 (EN-1.4301), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
184.16 €
[MSGV-15-0080-S16-42A2ST09] Model MSGV F5 - SS-304 Metal Seated Gate Valve, DN80-PN10/16 with Handwheel

Model MSGV F5 - SS-304 Metal Seated Gate Valve, DN80-PN10/16 with Handwheel

Metal Seated Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 15 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge & Body Sealing: Stainless Steel A2-AISI-304 (EN-1.4301), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
222.48 €
