Tilting Disc Check Valve

Tilting Type Check Valve
Sort By Sort By: Featured
[TTSCV-14-0700-E25-42A2ST00] Model TTSCV Tilting Type Swing Check Valve with Lever & Weight, DN700-PN25, EPDM

Model TTSCV Tilting Type Swing Check Valve with Lever & Weight, DN700-PN25, EPDM

Tilting Type Swing Check Valve with Lever and Weight, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 14 (F4), Body: GGG50 / EN-GJS-500-7, Spindle: AISI-420/EN 1.4021 (X20Cr13), Disc Sealing: EPDM, Body Sealing: Stainless Steel A2-AISI-304 (EN-1.4301), Bolts: stainless steel A2-70/SS304. Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
8,306.00 €
[TTSCV-14-0700-E40-42A2ST00] Model TTSCV Tilting Type Swing Check Valve with Lever & Weight, DN700-PN40, EPDM

Model TTSCV Tilting Type Swing Check Valve with Lever & Weight, DN700-PN40, EPDM

Tilting Type Swing Check Valve with Lever and Weight, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 14 (F4), Body: GGG50 / EN-GJS-500-7, Spindle: AISI-420/EN 1.4021 (X20Cr13), Disc Sealing: EPDM, Body Sealing: Stainless Steel A2-AISI-304 (EN-1.4301), Bolts: stainless steel A2-70/SS304. Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
11,627.00 €
[TTSCV-14-0800-E25-42A2ST00] Model TTSCV Tilting Type Swing Check Valve with Lever & Weight, DN800-PN25, EPDM

Model TTSCV Tilting Type Swing Check Valve with Lever & Weight, DN800-PN25, EPDM

Tilting Type Swing Check Valve with Lever and Weight, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 14 (F4), Body: GGG50 / EN-GJS-500-7, Spindle: AISI-420/EN 1.4021 (X20Cr13), Disc Sealing: EPDM, Body Sealing: Stainless Steel A2-AISI-304 (EN-1.4301), Bolts: stainless steel A2-70/SS304. Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
10,380.00 €
[TTSCV-14-0800-E40-42A2ST00] Model TTSCV Tilting Type Swing Check Valve with Lever & Weight, DN800-PN40, EPDM

Model TTSCV Tilting Type Swing Check Valve with Lever & Weight, DN800-PN40, EPDM

Tilting Type Swing Check Valve with Lever and Weight, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 14 (F4), Body: GGG50 / EN-GJS-500-7, Spindle: AISI-420/EN 1.4021 (X20Cr13), Disc Sealing: EPDM, Body Sealing: Stainless Steel A2-AISI-304 (EN-1.4301), Bolts: stainless steel A2-70/SS304. Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
14,534.00 €
[TTSCV-14-0900-E25-42A2ST00] Model TTSCV Tilting Type Swing Check Valve with Lever & Weight, DN900-PN25, EPDM

Model TTSCV Tilting Type Swing Check Valve with Lever & Weight, DN900-PN25, EPDM

Tilting Type Swing Check Valve with Lever and Weight, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 14 (F4), Body: GGG50 / EN-GJS-500-7, Spindle: AISI-420/EN 1.4021 (X20Cr13), Disc Sealing: EPDM, Body Sealing: Stainless Steel A2-AISI-304 (EN-1.4301), Bolts: stainless steel A2-70/SS304. Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
15,467.00 €

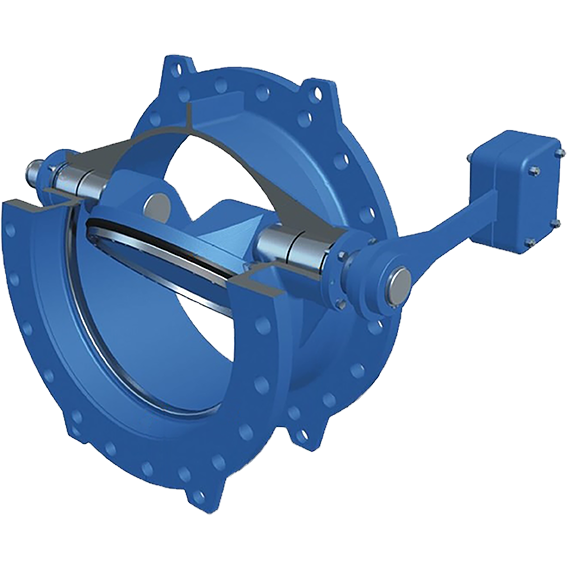

[TTSCV-14-0900-E40-42A2ST00] Model TTSCV Tilting Type Swing Check Valve with Lever & Weight, DN900-PN40, EPDM

Model TTSCV Tilting Type Swing Check Valve with Lever & Weight, DN900-PN40, EPDM

Tilting Type Swing Check Valve with Lever and Weight, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 14 (F4), Body: GGG50 / EN-GJS-500-7, Spindle: AISI-420/EN 1.4021 (X20Cr13), Disc Sealing: EPDM, Body Sealing: Stainless Steel A2-AISI-304 (EN-1.4301), Bolts: stainless steel A2-70/SS304. Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
21,652.00 €
[TTSCV-14-1000-E25-42A2ST00] Model TTSCV Tilting Type Swing Check Valve with Lever & Weight, DN1000-PN25, EPDM

Model TTSCV Tilting Type Swing Check Valve with Lever & Weight, DN1000-PN25, EPDM

Tilting Type Swing Check Valve with Lever and Weight, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 14 (F4), Body: GGG50 / EN-GJS-500-7, Spindle: AISI-420/EN 1.4021 (X20Cr13), Disc Sealing: EPDM, Body Sealing: Stainless Steel A2-AISI-304 (EN-1.4301), Bolts: stainless steel A2-70/SS304. Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
20,084.00 €
[TTSCV-14-1000-E40-42A2ST00] Model TTSCV Tilting Type Swing Check Valve with Lever & Weight, DN1000-PN40, EPDM

Model TTSCV Tilting Type Swing Check Valve with Lever & Weight, DN1000-PN40, EPDM

Tilting Type Swing Check Valve with Lever and Weight, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 14 (F4), Body: GGG50 / EN-GJS-500-7, Spindle: AISI-420/EN 1.4021 (X20Cr13), Disc Sealing: EPDM, Body Sealing: Stainless Steel A2-AISI-304 (EN-1.4301), Bolts: stainless steel A2-70/SS304. Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
28,117.00 €
[TTSCV-14-0250-E10-42A2STHD] DN250-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

DN250-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

Tilting Type Swing Check Valve with Hydraulic Damping, Lever and Weight, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 14 (F4), Body: GGG50 / EN-GJS-500-7, Spindle: AISI-420/EN 1.4021 (X20Cr13), Disc Sealing: EPDM, Body Sealing: welded Stainless Steel A2-AISI-304 (EN-1.4301), Bolts: stainless steel A2-70/SS304. Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
2,730.00 €
[TTSCV-14-0300-E10-42A2STHD] DN300-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

DN300-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

Tilting Type Swing Check Valve with Hydraulic Damping, Lever and Weight, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 14 (F4), Body: GGG50 / EN-GJS-500-7, Spindle: AISI-420/EN 1.4021 (X20Cr13), Disc Sealing: EPDM, Body Sealing: welded Stainless Steel A2-AISI-304 (EN-1.4301), Bolts: stainless steel A2-70/SS304. Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
2,966.00 €
[TTSCV-14-0350-E10-42A2STHD] DN350-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

DN350-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

Tilting Type Swing Check Valve with Hydraulic Damping, Lever and Weight, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 14 (F4), Body: GGG50 / EN-GJS-500-7, Spindle: AISI-420/EN 1.4021 (X20Cr13), Disc Sealing: EPDM, Body Sealing: welded Stainless Steel A2-AISI-304 (EN-1.4301), Bolts: stainless steel A2-70/SS304. Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
3,198.00 €
[TTSCV-14-0400-E10-42A2STHD] DN400-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

DN400-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

Tilting Type Swing Check Valve with Hydraulic Damping, Lever and Weight, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 14 (F4), Body: GGG50 / EN-GJS-500-7, Spindle: AISI-420/EN 1.4021 (X20Cr13), Disc Sealing: EPDM, Body Sealing: welded Stainless Steel A2-AISI-304 (EN-1.4301), Bolts: stainless steel A2-70/SS304. Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
3,869.00 €

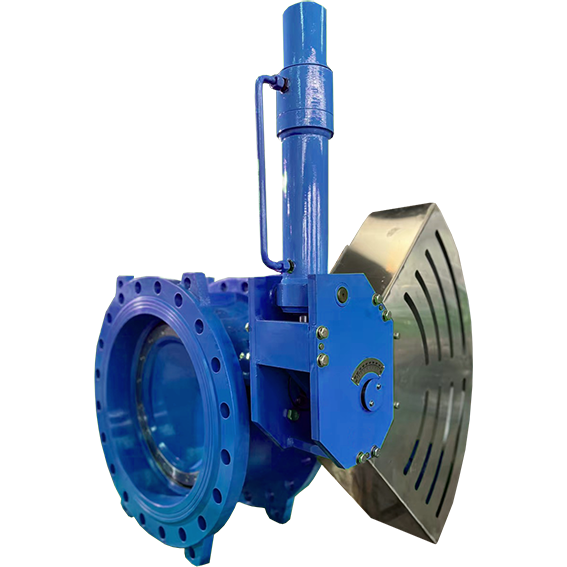

[TTSCV-14-0450-E10-42A2STHD] DN450-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

DN450-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

Tilting Type Swing Check Valve with Hydraulic Damping, Lever and Weight, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 14 (F4), Body: GGG50 / EN-GJS-500-7, Spindle: AISI-420/EN 1.4021 (X20Cr13), Disc Sealing: EPDM, Body Sealing: welded Stainless Steel A2-AISI-304 (EN-1.4301), Bolts: stainless steel A2-70/SS304. Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
4,193.00 €
[TTSCV-14-0500-E10-42A2STHD] DN500-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

DN500-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

Tilting Type Swing Check Valve with Hydraulic Damping, Lever and Weight, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 14 (F4), Body: GGG50 / EN-GJS-500-7, Spindle: AISI-420/EN 1.4021 (X20Cr13), Disc Sealing: EPDM, Body Sealing: welded Stainless Steel A2-AISI-304 (EN-1.4301), Bolts: stainless steel A2-70/SS304. Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
4,696.00 €
[TTSCV-14-0600-E10-42A2STHD] DN600-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

DN600-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

Tilting Type Swing Check Valve with Hydraulic Damping, Lever and Weight, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 14 (F4), Body: GGG50 / EN-GJS-500-7, Spindle: AISI-420/EN 1.4021 (X20Cr13), Disc Sealing: EPDM, Body Sealing: welded Stainless Steel A2-AISI-304 (EN-1.4301), Bolts: stainless steel A2-70/SS304. Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
5,899.00 €
[TTSCV-14-0200-E10-42A2STHD] DN200-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

DN200-PN10, Model TTSCV Tilting Type Swing Check Valve with hydraulic damping, Lever & Weight

Tilting Type Swing Check Valve with Hydraulic Damping, Lever and Weight, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 14 (F4), Body: GGG50 / EN-GJS-500-7, Spindle: AISI-420/EN 1.4021 (X20Cr13), Disc Sealing: EPDM, Body Sealing: welded Stainless Steel A2-AISI-304 (EN-1.4301), Bolts: stainless steel A2-70/SS304. Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
2,730.00 €
