Butterfly Valves

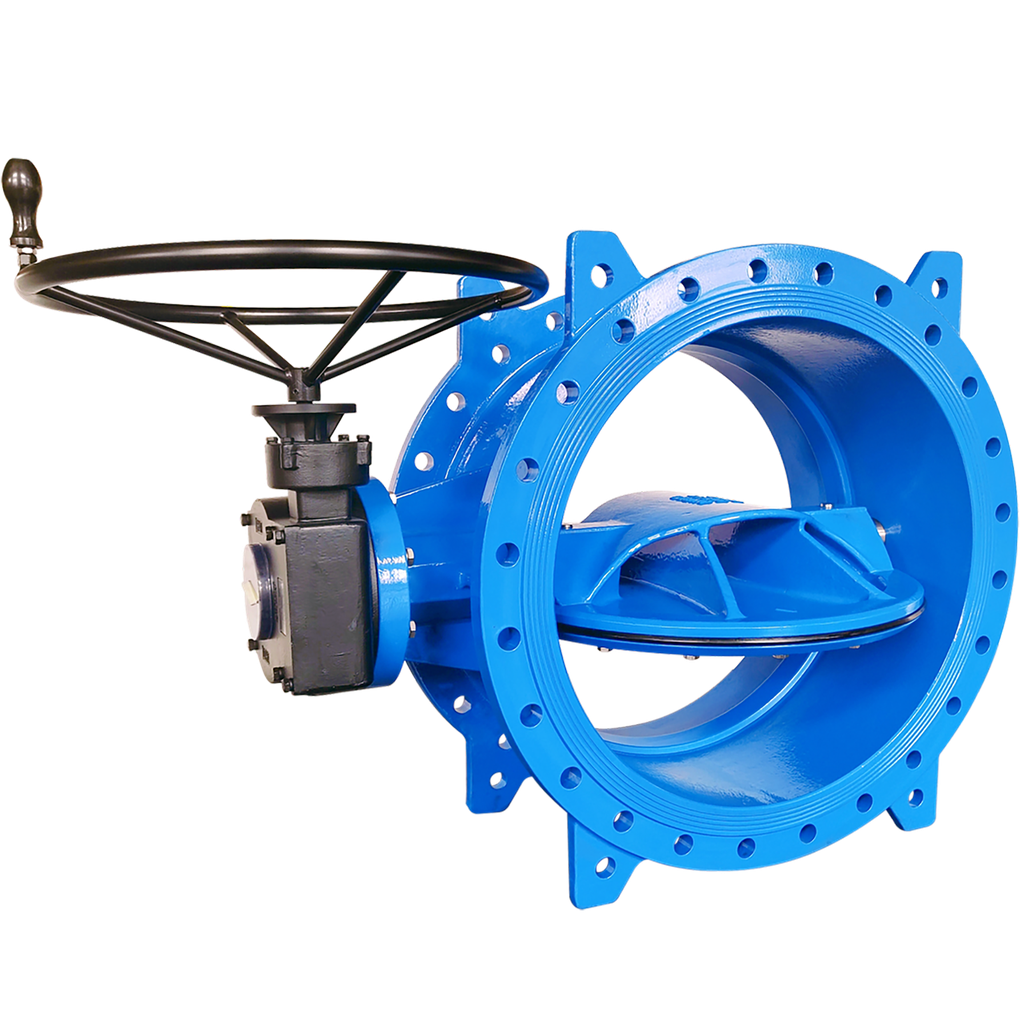

BI-DIRECTIONAL Double Eccentric Butterfly Valve acc.DIN-EN-593, flanged acc. EN1092-2, face to face length acc. to EN 558-1 series 14, Body, Disc and bearing covers: GGG-50 / EN-GJS-500-7, Disc Sealing: EPDM, Disc Retaining Ring: SS-304 Stainless Steel, Bolts: Stainless Steel A2-70 / SS-304 (EN-1.4301), Spindel: AISI-420 / EN 1.4021 (X20Cr13), Body Sealing: WELDED SS-304 (EN-1.4301), Bolts/nuts/washers of stainless steel SS-304 (EN-1.4301). Coating: Epoxy Coating RAL-5015  min 250  µm  acc. RAL-GSK. All materials in direct contact with drinking water comply with UBA-KTW, KTW-BWGL, and DVGW W-270. WRAS Approval No.: 251202041 (DN150-DN1600).

BI-DIRECTIONAL Double Eccentric Butterfly Valve acc.DIN-EN-593, flanged acc. EN1092-2, face to face length acc. to EN 558-1 series 14, Body, Disc and bearing covers: GGG-50 / EN-GJS-500-7, Disc Sealing: EPDM, Disc Retaining Ring: SS-304 Stainless Steel, Bolts: Stainless Steel A2-70 / SS-304 (EN-1.4301), Spindel: AISI-420 / EN 1.4021 (X20Cr13), Body Sealing: WELDED SS-304 (EN-1.4301), Bolts/nuts/washers of stainless steel SS-304 (EN-1.4301). Coating: Epoxy Coating RAL-5015  min 250  µm  acc. RAL-GSK. All materials in direct contact with drinking water comply with UBA-KTW, KTW-BWGL, and DVGW W-270. WRAS Approval No.: 251202041 (DN150-DN1600).

BI-DIRECTIONAL Double Eccentric Butterfly Valve acc.DIN-EN-593, flanged acc. EN1092-2, face to face length acc. to EN 558-1 series 14, Body, Disc and bearing covers: GGG-50 / EN-GJS-500-7, Disc Sealing: EPDM, Disc Retaining Ring: SS-304 Stainless Steel, Bolts: Stainless Steel A2-70 / SS-304 (EN-1.4301), Spindel: AISI-420 / EN 1.4021 (X20Cr13), Body Sealing: WELDED SS-304 (EN-1.4301), Bolts/nuts/washers of stainless steel SS-304 (EN-1.4301). Coating: Epoxy Coating RAL-5015  min 250  µm  acc. RAL-GSK. All materials in direct contact with drinking water comply with UBA-KTW, KTW-BWGL, and DVGW W-270. WRAS Approval No.: 251202041 (DN150-DN1600).

BI-DIRECTIONAL Double Eccentric Butterfly Valve acc.DIN-EN-593, flanged acc. EN1092-2, face to face length acc. to EN 558-1 series 14, Body, Disc and bearing covers: GGG-50 / EN-GJS-500-7, Disc Sealing: EPDM, Disc Retaining Ring: SS-304 Stainless Steel, Bolts: Stainless Steel A2-70 / SS-304 (EN-1.4301), Spindel: AISI-420 / EN 1.4021 (X20Cr13), Body Sealing: WELDED SS-304 (EN-1.4301), Bolts/nuts/washers of stainless steel SS-304 (EN-1.4301). Coating: Epoxy Coating RAL-5015  min 250  µm  acc. RAL-GSK. All materials in direct contact with drinking water comply with UBA-KTW, KTW-BWGL, and DVGW W-270. WRAS Approval No.: 251202041 (DN150-DN1600).

BI-DIRECTIONAL Double Eccentric Butterfly Valve acc.DIN-EN-593, flanged acc. EN1092-2, face to face length acc. to EN 558-1 series 14, Body, Disc and bearing covers: GGG-50 / EN-GJS-500-7, Disc Sealing: EPDM, Disc Retaining Ring: SS-304 Stainless Steel, Bolts: Stainless Steel A2-70 / SS-304 (EN-1.4301), Spindel: AISI-420 / EN 1.4021 (X20Cr13), Body Sealing: WELDED SS-304 (EN-1.4301), Bolts/nuts/washers of stainless steel SS-304 (EN-1.4301). Coating: Epoxy Coating RAL-5015  min 250  µm  acc. RAL-GSK. All materials in direct contact with drinking water comply with UBA-KTW, KTW-BWGL, and DVGW W-270. WRAS Approval No.: 251202041 (DN150-DN1600).

BI-DIRECTIONAL Double Eccentric Butterfly Valve acc.DIN-EN-593, flanged acc. EN1092-2, face to face length acc. to EN 558-1 series 14, Body, Disc and bearing covers: GGG-50 / EN-GJS-500-7, Disc Sealing: EPDM, Disc Retaining Ring: SS-304 Stainless Steel, Bolts: Stainless Steel A2-70 / SS-304 (EN-1.4301), Spindel: AISI-420 / EN 1.4021 (X20Cr13), Body Sealing: WELDED SS-304 (EN-1.4301), Bolts/nuts/washers of stainless steel SS-304 (EN-1.4301). Coating: Epoxy Coating RAL-5015  min 250  µm  acc. RAL-GSK. All materials in direct contact with drinking water comply with UBA-KTW, KTW-BWGL, and DVGW W-270. WRAS Approval No.: 251202041 (DN150-DN1600).

BI-DIRECTIONAL Double Eccentric Butterfly Valve acc.DIN-EN-593, flanged acc. EN1092-2, face to face length acc. to EN 558-1 series 14, Body, Disc and bearing covers: GGG-50 / EN-GJS-500-7, Disc Sealing: EPDM, Disc Retaining Ring: SS-304 Stainless Steel, Bolts: Stainless Steel A2-70 / SS-304 (EN-1.4301), Spindel: AISI-420 / EN 1.4021 (X20Cr13), Body Sealing: WELDED SS-304 (EN-1.4301), Bolts/nuts/washers of stainless steel SS-304 (EN-1.4301). Coating: Epoxy Coating RAL-5015  min 250  µm  acc. RAL-GSK. All materials in direct contact with drinking water comply with UBA-KTW, KTW-BWGL, and DVGW W-270. WRAS Approval No.: 251202041 (DN150-DN1600).

BI-DIRECTIONAL Double Eccentric Butterfly Valve acc.DIN-EN-593, flanged acc. EN1092-2, face to face length acc. to EN 558-1 series 14, Body, Disc and bearing covers: GGG-50 / EN-GJS-500-7, Disc Sealing: EPDM, Disc Retaining Ring: SS-304 Stainless Steel, Bolts: Stainless Steel A2-70 / SS-304 (EN-1.4301), Spindel: AISI-420 / EN 1.4021 (X20Cr13), Body Sealing: WELDED SS-304 (EN-1.4301), Bolts/nuts/washers of stainless steel SS-304 (EN-1.4301). Coating: Epoxy Coating RAL-5015  min 250  µm  acc. RAL-GSK. All materials in direct contact with drinking water comply with UBA-KTW, KTW-BWGL, and DVGW W-270. WRAS Approval No.: 251202041 (DN150-DN1600).

BI-DIRECTIONAL Double Eccentric Butterfly Valve acc.DIN-EN-593, flanged acc. EN1092-2, face to face length acc. to EN 558-1 series 14, Body, Disc and bearing covers: GGG-50 / EN-GJS-500-7, Disc Sealing: EPDM, Disc Retaining Ring: SS-304 Stainless Steel, Bolts: Stainless Steel A2-70 / SS-304 (EN-1.4301), Spindel: AISI-420 / EN 1.4021 (X20Cr13), Body Sealing: WELDED SS-304 (EN-1.4301), Bolts/nuts/washers of stainless steel SS-304 (EN-1.4301). Coating: Epoxy Coating RAL-5015  min 250  µm  acc. RAL-GSK. All materials in direct contact with drinking water comply with UBA-KTW, KTW-BWGL, and DVGW W-270. WRAS Approval No.: 251202041 (DN150-DN1600).

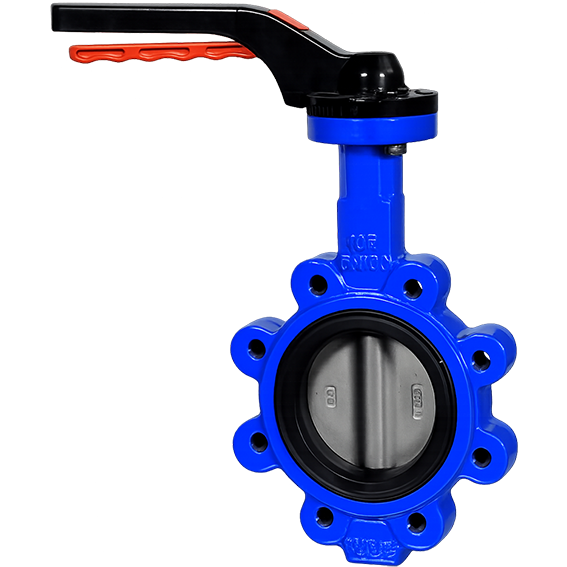

LUG Type Concentric Butterfly Valve acc. DIN-EN-593, flanged acc. EN1092-2, face to face length acc. to EN 558-1 series 20, Body: GGG-50 / EN-GJS-500-7, Sealing: EPDM, Disc: CF8M (SS-316 / 1.4408), Spindel: AISI-420 / EN 1.4021 (X20Cr13). Coating: Epoxy Coating RAL-5015  min 250 µm  acc. RAL-GSK. All materials in direct contact with drinking water comply with UBA-KTW, KTW-BWGL, and DVGW W-270.

LUG Type Concentric Butterfly Valve acc. DIN-EN-593, flanged acc. EN1092-2, face to face length acc. to EN 558-1 series 20, Body: GGG-50 / EN-GJS-500-7, Sealing: EPDM, Disc: CF8M (SS-316 / 1.4408), Spindel: AISI-420 / EN 1.4021 (X20Cr13). Coating: Epoxy Coating RAL-5015  min 250 µm  acc. RAL-GSK. All materials in direct contact with drinking water comply with UBA-KTW, KTW-BWGL, and DVGW W-270.

LUG Type Concentric Butterfly Valve acc. DIN-EN-593, flanged acc. EN1092-2, face to face length acc. to EN 558-1 series 20, Body: GGG-50 / EN-GJS-500-7, Sealing: EPDM, Disc: CF8M (SS-316 / 1.4408), Spindel: AISI-420 / EN 1.4021 (X20Cr13). Coating: Epoxy Coating RAL-5015  min 250 µm  acc. RAL-GSK. All materials in direct contact with drinking water comply with UBA-KTW, KTW-BWGL, and DVGW W-270.

LUG Type Concentric Butterfly Valve acc. DIN-EN-593, flanged acc. EN1092-2, face to face length acc. to EN 558-1 series 20, Body: GGG-50 / EN-GJS-500-7, Sealing: EPDM, Disc: CF8M (SS-316 / 1.4408), Spindel: AISI-420 / EN 1.4021 (X20Cr13). Coating: Epoxy Coating RAL-5015  min 250 µm  acc. RAL-GSK. All materials in direct contact with drinking water comply with UBA-KTW, KTW-BWGL, and DVGW W-270.

LUG Type Concentric Butterfly Valve acc. DIN-EN-593, flanged acc. EN1092-2, face to face length acc. to EN 558-1 series 20, Body: GGG-50 / EN-GJS-500-7, Sealing: EPDM, Disc: CF8M (SS-316 / 1.4408), Spindel: AISI-420 / EN 1.4021 (X20Cr13). Coating: Epoxy Coating RAL-5015  min 250 µm  acc. RAL-GSK. All materials in direct contact with drinking water comply with UBA-KTW, KTW-BWGL, and DVGW W-270.

LUG Type Concentric Butterfly Valve acc. DIN-EN-593, flanged acc. EN1092-2, face to face length acc. to EN 558-1 series 20, Body: GGG-50 / EN-GJS-500-7, Sealing: EPDM, Disc: CF8M (SS-316 / 1.4408), Spindel: AISI-420 / EN 1.4021 (X20Cr13). Coating: Epoxy Coating RAL-5015  min 250 µm  acc. RAL-GSK. All materials in direct contact with drinking water comply with UBA-KTW, KTW-BWGL, and DVGW W-270.

LUG Type Concentric Butterfly Valve acc. DIN-EN-593, flanged acc. EN1092-2, face to face length acc. to EN 558-1 series 20, Body: GGG-50 / EN-GJS-500-7, Sealing: EPDM, Disc: CF8M (SS-316 / 1.4408), Spindel: AISI-420 / EN 1.4021 (X20Cr13). Coating: Epoxy Coating RAL-5015  min 250 µm  acc. RAL-GSK. All materials in direct contact with drinking water comply with UBA-KTW, KTW-BWGL, and DVGW W-270.

LUG Type Concentric Butterfly Valve acc. DIN-EN-593, flanged acc. EN1092-2, face to face length acc. to EN 558-1 series 20, Body: GGG-50 / EN-GJS-500-7, Sealing: EPDM, Disc: CF8M (SS-316 / 1.4408), Spindel: AISI-431 / 1.4057 (X17CrNi16-2). Coating: Epoxy Coating RAL-5015  min 250 µm  acc. RAL-GSK. All materials in direct contact with drinking water comply with UBA-KTW, KTW-BWGL, and DVGW W-270.

LUG Type Concentric Butterfly Valve acc. DIN-EN-593, flanged acc. EN1092-2, face to face length acc. to EN 558-1 series 20, Body: GGG-50 / EN-GJS-500-7, Sealing: EPDM, Disc: CF8M (SS-316 / 1.4408), Spindel: AISI-431 / 1.4057 (X17CrNi16-2). Coating: Epoxy Coating RAL-5015  min 250 µm  acc. RAL-GSK. All materials in direct contact with drinking water comply with UBA-KTW, KTW-BWGL, and DVGW W-270.

LUG Type Concentric Butterfly Valve acc. DIN-EN-593, flanged acc. EN1092-2, face to face length acc. to EN 558-1 series 20, Body: GGG-50 / EN-GJS-500-7, Sealing: EPDM, Disc: CF8M (SS-316 / 1.4408), Spindel: AISI-431 / 1.4057 (X17CrNi16-2). Coating: Epoxy Coating RAL-5015  min 250 µm  acc. RAL-GSK. All materials in direct contact with drinking water comply with UBA-KTW, KTW-BWGL, and DVGW W-270.

LUG Type Concentric Butterfly Valve acc. DIN-EN-593, flanged acc. EN1092-2, face to face length acc. to EN 558-1 series 20, Body: GGG-50 / EN-GJS-500-7, Sealing: EPDM, Disc: CF8M (SS-316 / 1.4408), Spindel: AISI-431 / 1.4057 (X17CrNi16-2). Coating: Epoxy Coating RAL-5015  min 250 µm  acc. RAL-GSK. All materials in direct contact with drinking water comply with UBA-KTW, KTW-BWGL, and DVGW W-270.
