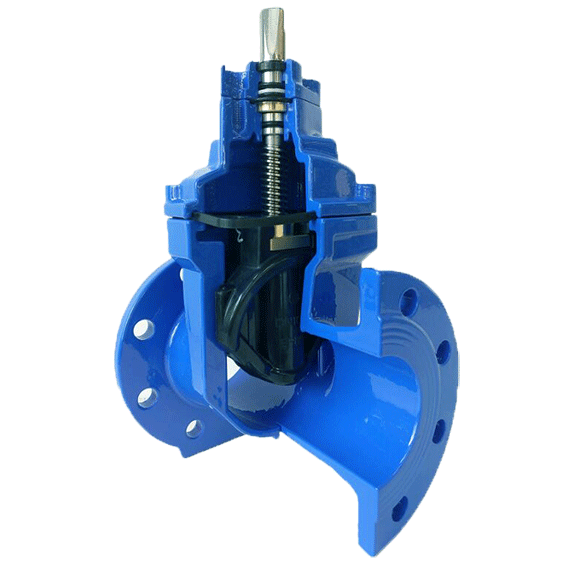

Model RSGV F4 Gate Valve, DN600-PN10, NBR with Handwheel
Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with NBR, Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.
| DN Size | DN600 |
| Connection / Pressure (PN) | Flanged PN10 (EN1092) |
| Face to Face | EN-558-1 Series 14 (F4) |
| Sealing Type | NBR |
| Design | Double Flanged |
| Body Material | GGG50 (EN-GJS-500-7) |
| Spindle | AISI-420 (A2-DIN 1.4021) |
| Coating | RAL-5015 with WRAS-DVGW-W270 Approval (min 250 microns) |
| Actuation | Handwheel |
| Flow Direction | Bi-Directional |
| Warranty Period | 5 YEARS Warranty |
30-day money-back guarantee
Shipping: 2-3 Business Days
