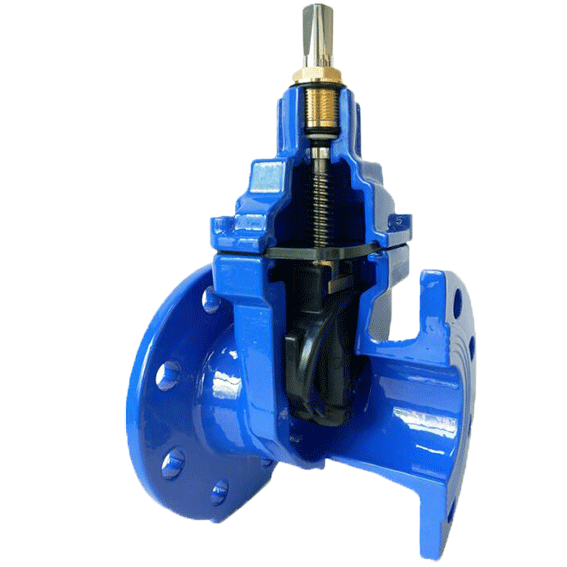

Model RSGV F4 Gate Valve, DN65-PN25, EPDM with Handwheel

Model RSGV F4 Gate Valve, DN65-PN25, EPDM with Handwheel

DVGW-W270/WRAS Approved Flanged Gate Valve acc. to DIN EN 1171/DIN EN 1074-1&2 , DIN EN 558-1 Series 14 , Flanges acc. DIN EN 1092, Body, Wedge & Bonnet: GGG50 / EN-GJS-500-7, Wedge fully covered with EPDM (DVGW W-270), Spindle: AISI-420/EN 1.4021 (X20Cr13), Bolts: Stainless Steel A2-AISI-304 (EN-1.4301), Stem nut: Brass, Coating: Epoxy Coating RAL-5015  min 250  µm  acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Operation: with Handwheel
101.37 € 101.37 € (Tax excluded)

  • DN Size
  • Connection / Pressure (PN)
  • Face to Face
  • Sealing Type
  • Design
  • Body Material
  • Spindle
  • Coating
  • Actuation
  • Flow Direction
  • Warranty Period
6 Units left in stock
Add to cart
Add to wishlist
DN Size DN65
Connection / Pressure (PN) Flanged PN25 (EN1092)
Face to Face EN-558-1 Series 14 (F4)
Sealing Type EPDM (DVGW W270)
Design Double Flanged
Body Material GGG50 (EN-GJS-500-7)
Spindle AISI-420 (A2-DIN 1.4021)
Coating RAL-5015 with WRAS-DVGW-W270 Approval (min 250 microns)
Actuation Handwheel
Flow Direction Bi-Directional
Warranty Period 5 YEARS Warranty
DN Size: DN65
Connection / Pressure (PN): Flanged PN25 (EN1092)
Face to Face: EN-558-1 Series 14 (F4)
Sealing Type: EPDM (DVGW W270)
Design: Double Flanged
Body Material: GGG50 (EN-GJS-500-7)
Spindle: AISI-420 (A2-DIN 1.4021)
Coating: RAL-5015 with WRAS-DVGW-W270 Approval (min 250 microns)
Actuation: Handwheel
Flow Direction: Bi-Directional
Warranty Period: 5 YEARS Warranty
