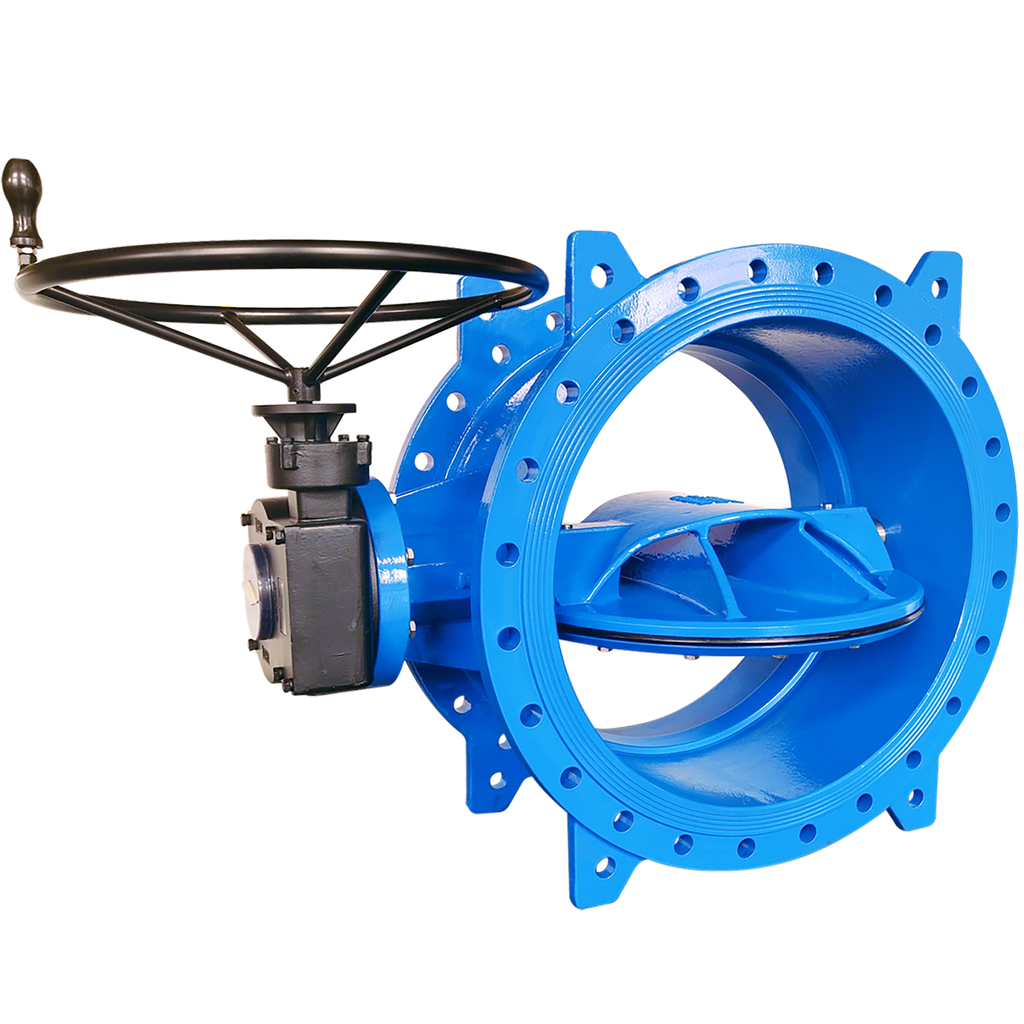

Model B-DEBFV Double Eccentric Butterfly Valve, F4, DN400-PN10, EPDM. Operation: Gearbox with Handwheel & ISO Top (ISO-5211)
BI-DIRECTIONAL Double Eccentric Butterfly Valve acc.DIN-EN-593, flanged acc. EN1092-2, face to face length acc. to EN 558-1 series 14, Body, Disc and bearing covers: GGG-50 / EN-GJS-500-7, Disc Sealing: EPDM, Disc Retaining Ring: SS-304 Stainless Steel, Bolts: Stainless Steel A2-70 / SS-304 (EN-1.4301), Spindel: AISI-420 / EN 1.4021 (X20Cr13), Body Sealing: WELDED SS-304 (EN-1.4301), Bolts/nuts/washers of stainless steel SS-304 (EN-1.4301). Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with drinking water comply with UBA-KTW, KTW-BWGL, and DVGW W-270. WRAS Approval No.: 251202041 (DN150-DN1600). NOTE: DN1400, DN3000, and PN40 are available upon request.
| DN Size | DN400 |
| Connection / Pressure (PN) | Flanged PN10 (EN1092) |
| Face to Face | EN-558-1 Series 14 (F4) |
| Sealing Type | EPDM (DVGW W270) |
| Design | Double Flanged |
| Body Material | GGG50 (EN-GJS-500-7) |
| Spindle | AISI-420 (A2-DIN 1.4021) |
| Coating | RAL-5015 with WRAS-DVGW-W270 Approval (min 250 microns) |
| Actuation | Gearbox & Handwheel |
| Flow Direction | Bi-Directional |
| Warranty Period | 5 YEARS Warranty |
