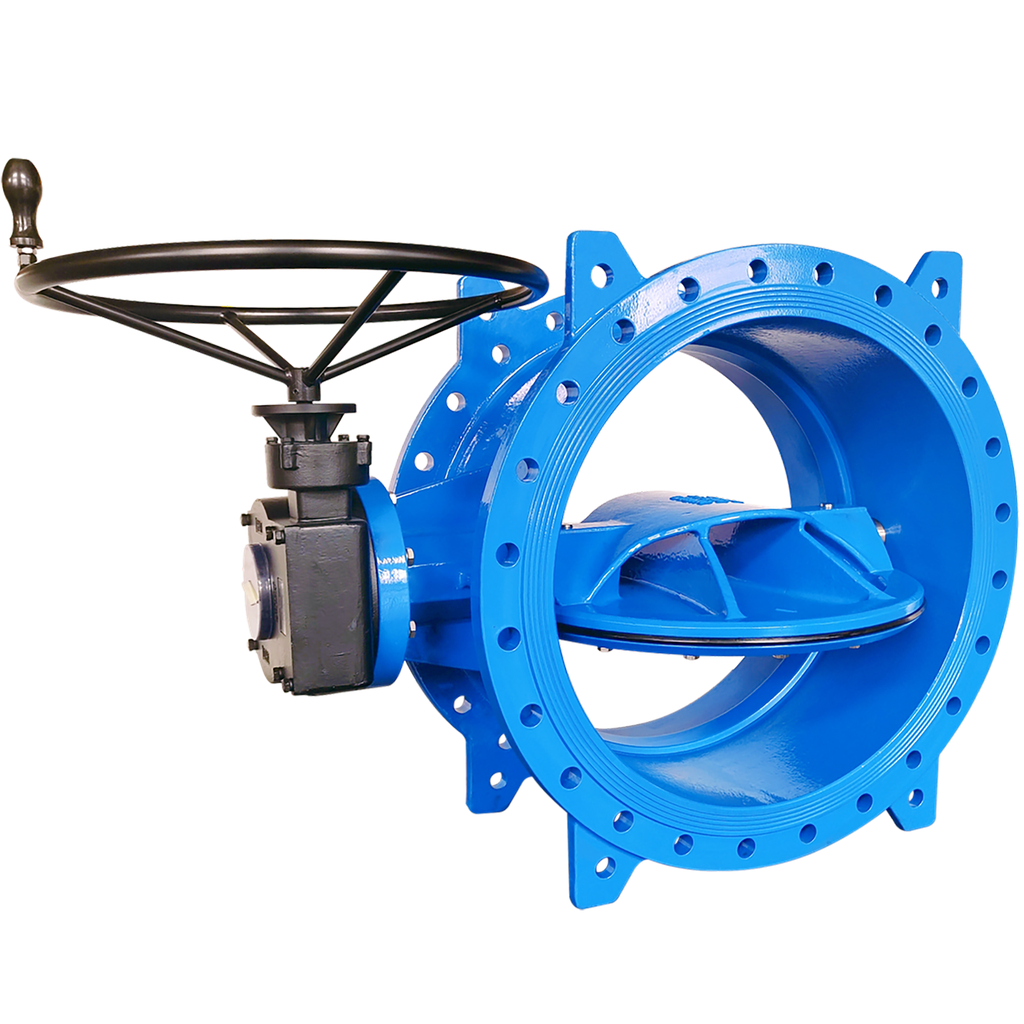

Model B-DEBFV Dubbel Excentrische Vlinderklep, F4, DN400-PN10, EPDM. Bediening: Wormkast met Handwiel & ISO Top (ISO-5211)
BI-DIRECTIONALE Dubbel Excentrische Vlinderklep volgens DIN-EN-593, Flensboring volgens EN1092-2, Inbouwlengte: EN 558-1 serie 14, Behuizing & Klep: GGG-50 / EN-GJS-500-7, Schijfafdichting: EPDM, Afdichtingssluitring: Roestvast Staal SS-304 , Bouten: Roestvast Staal A2-70 / SS-304 (EN-1.4301), Spindel: AISI-420 / EN 1.4021 (X20Cr13), Afdichting in behuizing: gelast SS-304 (EN-1.4301). Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. Alle materialen in direct contact met drinkwater volgens UBA-KTW, KTW-BWGL en DVGW W-270. WRAS Approval No.: 251202041 (DN150-DN1600). NOTE: DN1400-DN3000 en PN40 Op Aanvraag.
| DN Afmeting | DN400 |
| Connection / Pressure (PN) | Flanged PN10 (EN1092) |
| Inbouwmaat | EN-558-1 Series 14 (F4) |
| Dichting | EPDM (DVGW W270) |
| Aansluiting | Double Flanged |
| Behuizing | GGG50 (EN-GJS-500-7) |
| Spindle | AISI-420 (A2-DIN 1.4021) |
| Coating | RAL-5015 with WRAS-DVGW-W270 Approval (min 250 microns) |
| Bediening | Gearbox & Handwiel |
| Flow Direction | Bi-Directional |
| Warranty Period | 5 YEARS Warranty |
30-day money-back guarantee
Shipping: 2-3 Business Days
