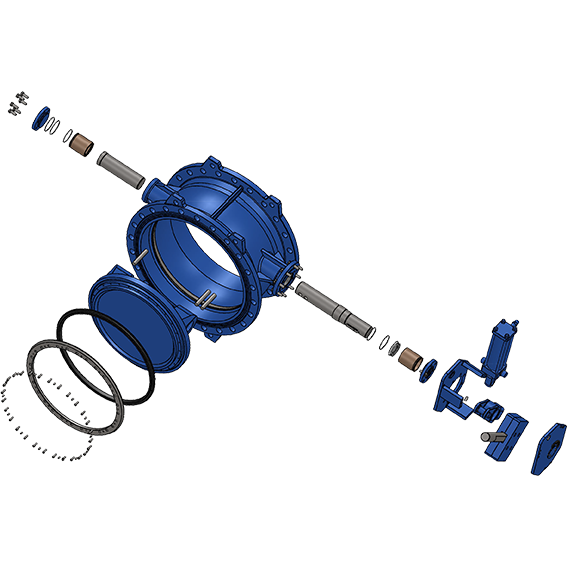

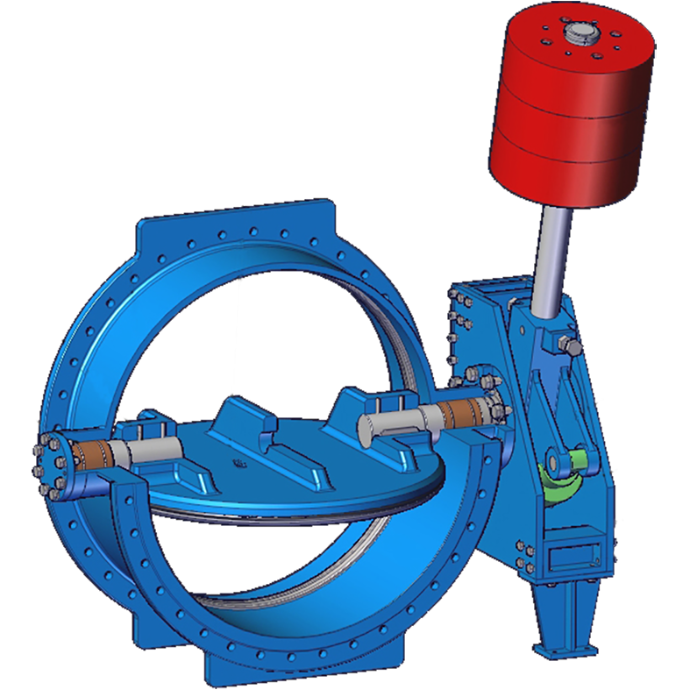

Tilting Type Check Valve with Hydraulic Damper
Reliable non‑return valve for demanding industrial applications
A tilting type check valve is a robust non‑return valve designed to prevent reverse flow in piping systems with high flow rates and varying pressures. Thanks to the tilting disc design, this type of check valve offers smooth operation, reduced slamming and lower pressure loss compared to conventional swing check valves.
Tilting type check valves are widely used in heavy‑duty and critical industrial installations where reliability and operational safety are essential.
Advantages of tilting type check valves
Reliable prevention of reverse flow
Low pressure loss due to optimized flow path
Reduced water hammer and slamming
Suitable for high flow velocities
Long service life with minimal maintenance
Robust construction for continuous operation
Typical applications
Tilting type check valves are commonly used in:
Power generation and power plants
Water and wastewater treatment facilities
Cooling water systems
Oil and gas industry
Petrochemical and chemical plants
Industrial process and pipeline systems
Designs and configurations
Our tilting type check valves are available in various designs to suit different operating conditions:
Metal‑seated and soft‑seated designs
Flanged and butt‑welded connections
Horizontal or vertical installation
With or without hydraulic damping systems
Carbon steel, stainless steel and special alloy versions
Technical specifications
Tilting type check valves are engineered for severe service conditions:
Nominal sizes: DN 100 – DN 2000
Pressure ratings: PN 10 – PN 40 (higher on request)
Materials: carbon steel, stainless steel, special alloys
Temperature ranges depending on materials and design
Why choose a tilting type check valve?
A tilting type check valve provides superior performance in applications with high flow rates and frequent load changes. The tilting disc minimizes impact forces, reduces wear and helps protect downstream equipment from damage caused by reverse flow or water hammer.
This makes tilting type check valves an ideal solution for safety‑critical and high‑duty systems.
Standards, quality and safety
Our tilting type check valves comply with international standards and directives:
EN / DIN
ISO
Pressure Equipment Directive (PED)
API (on request)
Each valve is tested before delivery to ensure maximum quality, reliability and operational safety.
Technical support & quotation
Looking for the right tilting type check valve for your application? Our technical experts are ready to support you with selection and engineering advice.
📩 Contact us for technical support or a customized quotation.
