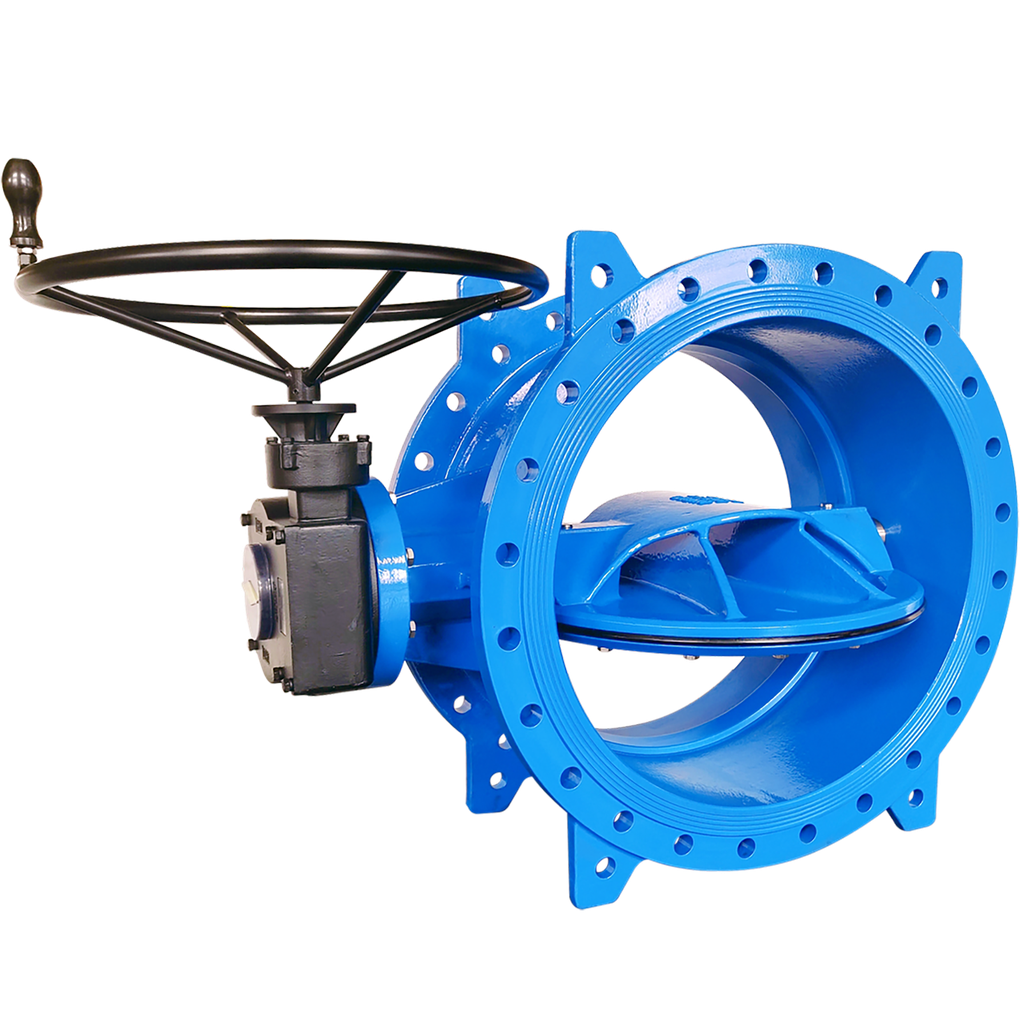

Model U-DEBFV Double Eccentric Butterfly Valve, F4, DN800-PN16, NBR. Operation: Gearbox with Handwheel & ISO Top (ISO-5211)
UNI-DIRECTIONAL Double Eccentric Butterfly Valve acc.DIN-EN-593, flanged acc. EN1092-2, face to face length acc. to EN 558-1 series 14, Body, Disc and bearing covers: GGG-40 / EN-GJS-400-15, Disc Sealing: NBR, Disc Retaining Ring: coated Steel (Q235), Bolts: Stainless Steel A2-70 / SS-304 (EN-1.4301), Spindel: AISI-420 / EN 1.4021 (X20Cr13), Body Sealing: WELDED SS-304 (EN-1.4301), Bolts/nuts/washers of stainless steel SS-304 (EN-1.4301). Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.
| DN Size | DN800 |
| Connection / Pressure (PN) | Flanged PN16 (EN1092) |
| Face to Face | EN-558-1 Series 14 (F4) |
| Sealing Type | NBR |
| Design | Double Flanged |
| Body Material | GGG40 (EN-GJS-400-15) |
| Spindle | AISI-420 (A2-DIN 1.4021) |
| Coating | RAL-5015 with WRAS-DVGW-W270 Approval (min 250 microns) |
| Actuation | Gearbox & Handwheel |
| Flow Direction | Uni-Directional |
| Warranty Period | 2 YEARS Warranty |
30-day money-back guarantee
Shipping: 2-3 Business Days
