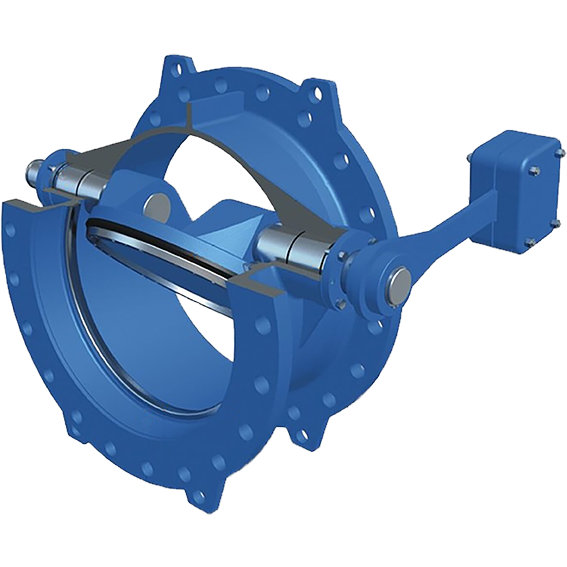

Model TTSCV Tilting Type Swing Check Valve with Lever & Weight, DN900-PN16, EPDM

Model TTSCV Tilting Type Swing Check Valve with Lever & Weight, DN900-PN16, EPDM

Tilting Type Swing Check Valve with Lever and Weight, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 14 (F4), Body: GGG50 / EN-GJS-500-7, Spindle: AISI-420/EN 1.4021 (X20Cr13), Disc Sealing: EPDM, Body Sealing: Stainless Steel A2-AISI-304 (EN-1.4301), Bolts: stainless steel A2-70/SS304. Coating: Epoxy Coating RAL-5015  min 250  µm  acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
10,428.60 € 10,428.60 € (Tax excluded)

  • DN Size
  • Connection / Pressure (PN)
  • Face to Face
  • Sealing Type
  • Design
  • Body Material
  • Spindle
  • Coating
  • Flow Direction
  • Warranty Period
6 Units left in stock
DN Size DN900
Connection / Pressure (PN) Flanged PN16 (EN1092)
Face to Face EN-558-1 Series 14 (F4)
Sealing Type EPDM (DVGW W270)
Design Double Flanged
Body Material GGG50 (EN-GJS-500-7)
Spindle AISI-420 (A2-DIN 1.4021)
Coating RAL-5015 with WRAS-DVGW-W270 Approval (min 250 microns)
Flow Direction Uni-Directional
Warranty Period 5 YEARS Warranty
