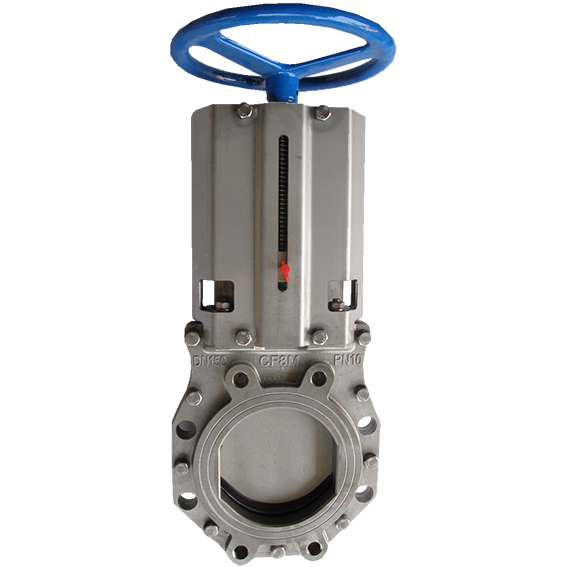

Model SS-KGV Stainless Steel Knife Gate Valve, DN500-PN10, Body: SS316-CF8M, Knife A4-SS316L (1.4404). Operation: Gearbox & Handwheel

Model SS-KGV Stainless Steel Knife Gate Valve, DN500-PN10, Body: SS316-CF8M, Knife A4-SS316L (1.4404). Operation: Gearbox & Handwheel

Knife Gate Valve, non-rising stem, PN10 Full Flange Type, face to face: EN 558-1 Series 20, Spindle: SS316-1.4401, Body: SS316-CF8M-1.4408, Sealing: NBR , Stem nut: Alubronze. Operation: with Handwheel
7,500.00 € 7,500.00 € (Tax excluded)

Forecasted: 0
Please contact us for updated Stock Availability
  • DN Size
  • Connection / Pressure (PN)
  • Face to Face
  • Sealing Type
  • Design
  • Body Material
  • Spindle
  • Actuation
  • Flow Direction
  • Warranty Period
6 Units left in stock
Add to cart
Add to wishlist
DN Size DN500
Connection / Pressure (PN) Flanged PN10 (EN1092)
Face to Face EN-558-1 Series 20 (K1)
Sealing Type NBR
Design Lug / Full Flange Type
Body Material Stainless Steel
Spindle SS316 (A4-DIN 1.4401)
Actuation Gearbox & Handwheel
Flow Direction Bi-Directional
Warranty Period 5 YEARS Warranty
Contact Us
DN Size: DN500
Connection / Pressure (PN): Flanged PN10 (EN1092)
Face to Face: EN-558-1 Series 20 (K1)
Sealing Type: NBR
Design: Lug / Full Flange Type
Body Material: Stainless Steel
Spindle: SS316 (A4-DIN 1.4401)
Actuation: Gearbox & Handwheel
Flow Direction: Bi-Directional
Warranty Period: 5 YEARS Warranty
