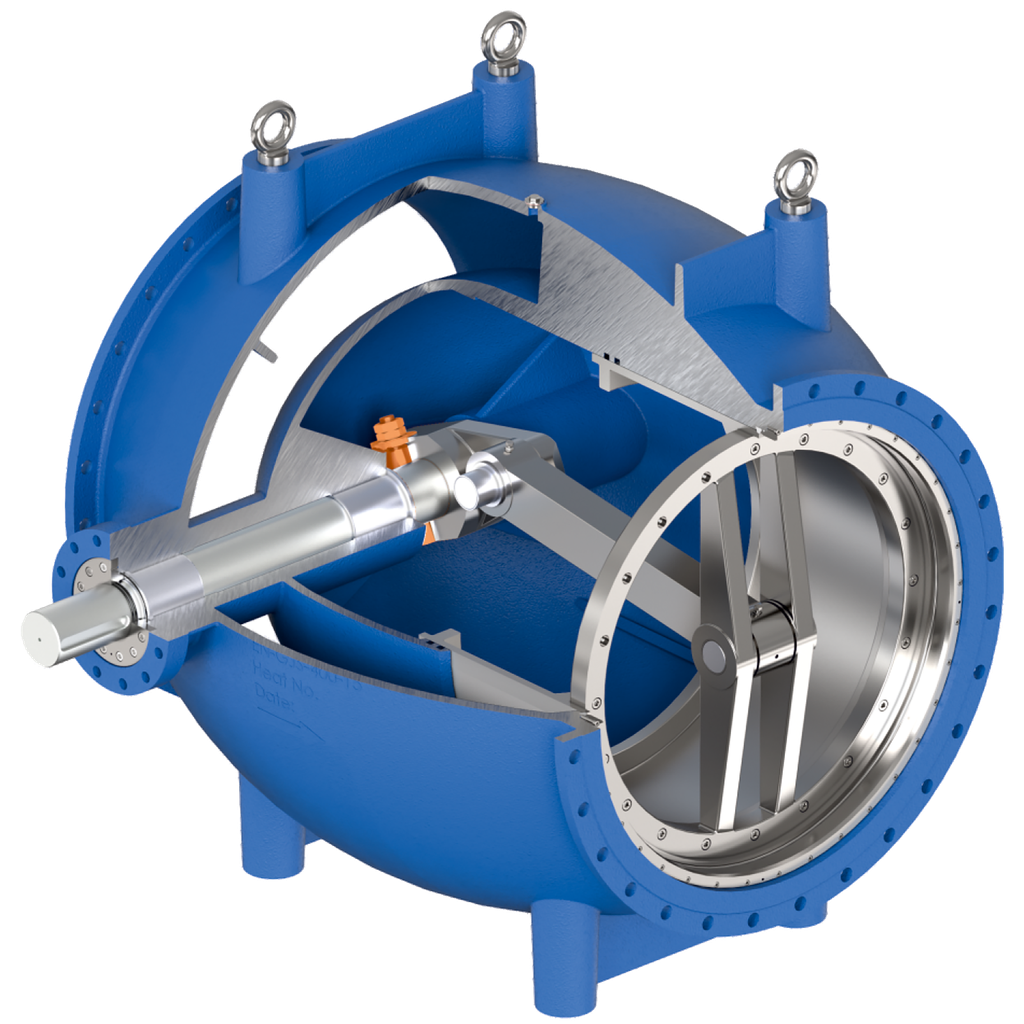

Model PLUVA Plunger Valve, DN700-PN10, EPDM. Operation: AUMA Gearbox with Handwheel & ISO Top (ISO-5210)
Plunger - Needle Valve, Body: GGG50 (EN-GJS-500-7), Face to Face acc. EN 558-1 Series 15 (F5) up to DN450. Above DN500-DN1200: 1.5 * DN, Flanges acc. EN 1092-2 RF, Piston: SS-304-A2 (ASTM A351 GR CF8), Connecting Rod: SS-304-A2 (ASTM A351 GR CF8), Crank: SS-304-A2 (ASTM A351 GR CF8), Shaft: F51 Duplex 2205 Stainless Steel (22% Cr - SS ASTM A182 GR F51), Retaining Ring: SS-304-A2 (ASTM A351 GR CF8), Seat Sealing: EPDM (WRAS-DVGW W-270), Piston Guide: Bronze Overlay, Shaft Bushing: Bronze, Cap screws: A4-70 (SS-316), Vent Plug: SS-304-A2, Eye Bolt: C15. Valve Test as per EN-12266-1, Coating: Fusion Bonded Epoxy Coating RAL-5005 (WRAS-DVGW W-270), min 250 microns. NOTE: DN100-DN1200 - PN10/16/25. ON REQUEST: PN40 and DN1400-DN2000
| DN Size | DN700 |
| Connection / Pressure (PN) | Flanged PN10 (EN1092) |
| Face to Face | EN-558-1 Series 15 (F5) |
| Sealing Type | EPDM (DVGW W270) |
| Design | Double Flanged |
| Body Material | GGG50 (EN-GJS-500-7) |
| Spindle | F51 Duplex 2205 (ASTM A182 GR F51) |
| Coating | RAL-5015 with WRAS-DVGW-W270 Approval (min 250 microns) |
| Actuation | Gearbox & Handwheel |
| Flow Direction | Uni-Directional |
| Warranty Period | 5 YEARS Warranty |
30-day money-back guarantee
Shipping: 2-3 Business Days
