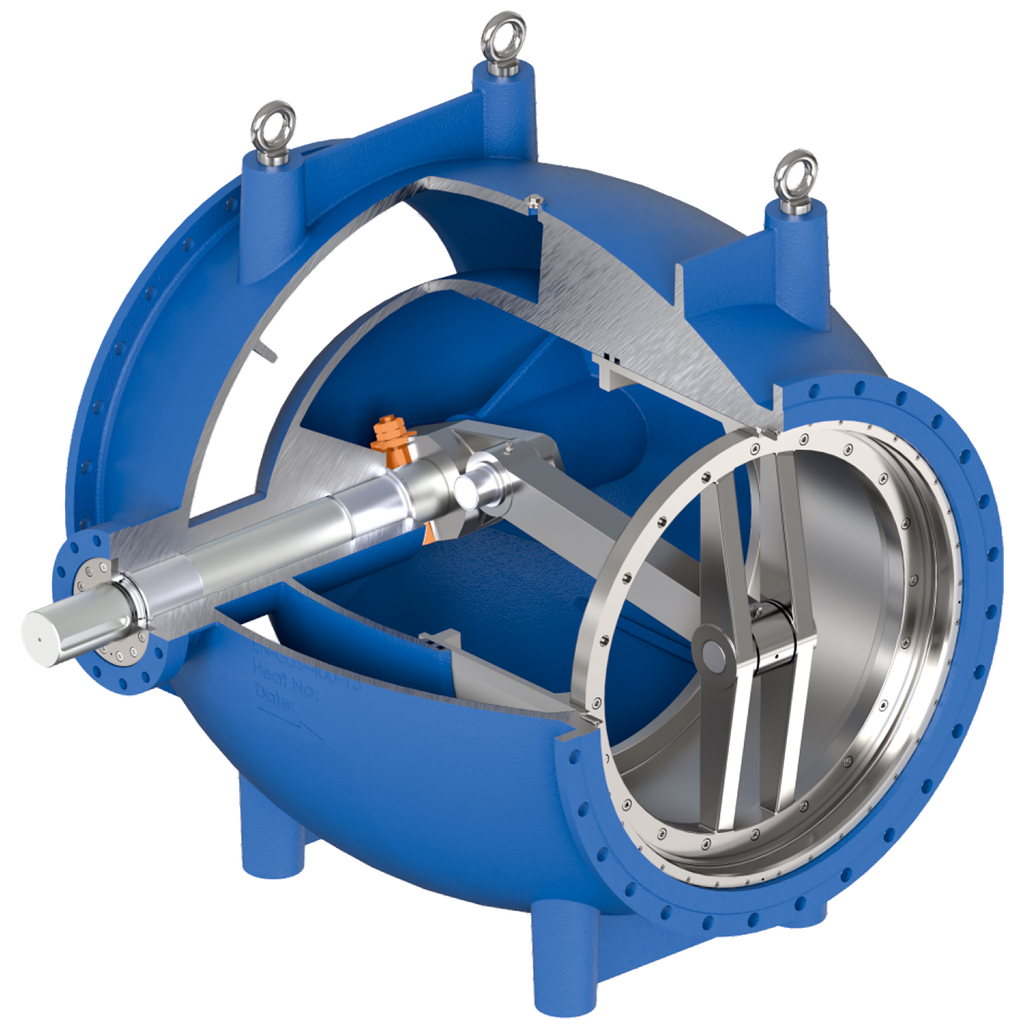

Model PLUVA Plunger Valve, DN500-PN10, EPDM-WCB. Operation: AUMA Gearbox, AUMA SAR Actuator and AUMATIC AC01.2

Model PLUVA Plunger Valve, DN500-PN10, EPDM-WCB. Operation: AUMA Gearbox, AUMA SAR Actuator and AUMATIC AC01.2

Plunger - Needle Valve, Body: ASTM A216 GR WCB + FBE Coating, Face to Face acc. EN 558-1 Series 15 (F5) up to DN450. Above DN500-DN1200: 1.5 * DN,  Piston: SS-304-A2 (ASTM A351 GR CF8), Connecting Rod: SS-304-A2 (ASTM A351 GR CF8), Crank: SS-304-A2 (ASTM A351 GR CF8), Shaft: F51 Duplex 2205 Stainless Steel (22% Cr - SS ASTM A182 GR F51), Retaining Ring: SS-304-A2 (ASTM A351 GR CF8), Seat Sealing: EPDM (WRAS-DVGW W-270), Piston Guide: Bronze Overlay, Shaft Bushing: Bronze, Cap screws: A4-70 (SS-316), Vent Plug: SS-304-A2, Eye Bolt: C15. Valve Test as per EN-12266-1, Coating: Fusion Bonded Epoxy Coating RAL-5005 (WRAS-DVGW W-270), avg 250-310 microns.
38,840.00 € 38,840.00 € (Tax excluded)

Contact us for updated quantity
Contact Us
  • DN Size
  • Connection / Pressure (PN)
  • Face to Face
  • Sealing Type
  • Design
  • Body Material
  • Spindle
  • Coating
  • Actuation
  • Flow Direction
  • Warranty Period
6 Units left in stock
Sign in to purchase
Add to wishlist
DN Size DN500
Connection / Pressure (PN) Flanged PN10 (EN1092)
Face to Face EN-558-1 Series 15 (F5)
Sealing Type EPDM (DVGW W270)
Design Double Flanged
Body Material WCB
Spindle F51 Duplex 2205 (ASTM A182 GR F51)
Coating RAL-5015 with WRAS-DVGW-W270 Approval (min 250 microns)
Actuation Electric Actuator
Flow Direction Uni-Directional
Warranty Period 5 YEARS Warranty
Contact Us
DN Size: DN500
Connection / Pressure (PN): Flanged PN10 (EN1092)
Face to Face: EN-558-1 Series 15 (F5)
Sealing Type: EPDM (DVGW W270)
Design: Double Flanged
Body Material: WCB
Spindle: F51 Duplex 2205 (ASTM A182 GR F51)
Coating: RAL-5015 with WRAS-DVGW-W270 Approval (min 250 microns)
Actuation: Electric Actuator
Flow Direction: Uni-Directional
Warranty Period: 5 YEARS Warranty
