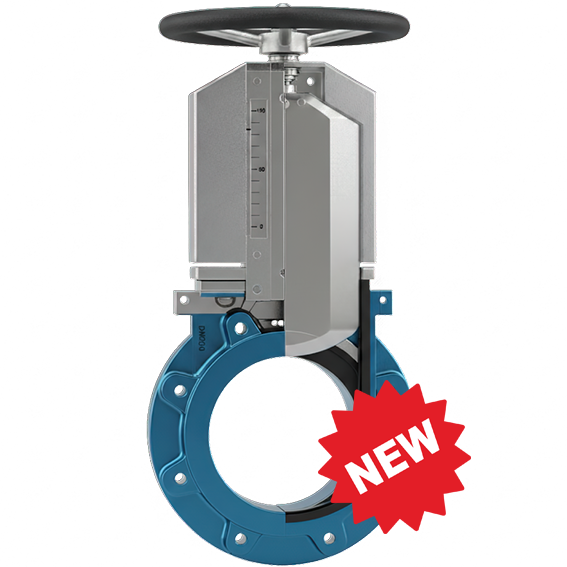

Model M-KGV Knife Gate Valve, DN350-PN10, Knife A4-SS316L (1.4404). Operation: Handwheel

Model M-KGV Knife Gate Valve, DN350-PN10, Knife A4-SS316L (1.4404). Operation: Handwheel

Knife Gate Valve, non-rising stem, (Semi) LUG type, face to face: EN 558-1 Series 20, Spindle: AISI-420/EN 1.4021 (X20Cr13), Body: GGG40- EN-GJS 400-15, Sealing: NBR , Stem nut: Alubronze, Coating: Epoxy Coating RAL-5015  min 250  µm  acc. RAL-GSK. Operation: with Handwheel
1,926.46 € 1,926.46 € (Tax excluded)

  • DN Size
  • Connection / Pressure (PN)
  • Face to Face
  • Sealing Type
  • Design
  • Body Material
  • Spindle
  • Coating
  • Actuation
  • Flow Direction
  • Warranty Period
6 Units left in stock
DN Size DN350
Connection / Pressure (PN) Flanged PN10 (EN1092)
Face to Face EN-558-1 Series 20 (K1)
Sealing Type NBR
Design Lug Type
Body Material GGG40 (EN-GJS-400-15)
Spindle AISI-420 (A2-DIN 1.4021)
Coating RAL-5015 with WRAS-DVGW-W270 Approval (min 250 microns)
Actuation Handwheel
Flow Direction Bi-Directional
Warranty Period 5 YEARS Warranty
