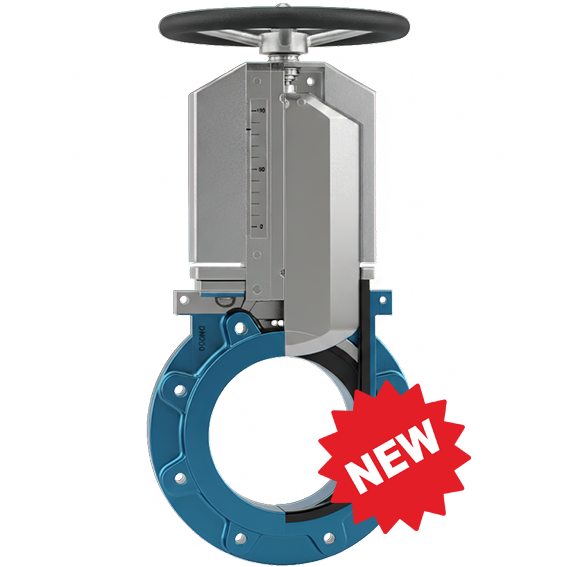

Model M-KGV Knife Gate Valve, DN200-PN10, Knife A4-SS316L (1.4404). Operation: Handwheel
Knife Gate Valve, non-rising stem, (Semi) LUG type, face to face: EN 558-1 Series 20, Spindle: AISI-420/EN 1.4021 (X20Cr13), Body: GGG40- EN-GJS 400-15, Sealing: NBR , Stem nut: Alubronze, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. Operation: with Handwheel
| DN Size | DN200 |
| Connection / Pressure (PN) | Flanged PN10 (EN1092) |
| Face to Face | EN-558-1 Series 20 (K1) |
| Sealing Type | NBR |
| Design | Lug Type |
| Body Material | GGG40 (EN-GJS-400-15) |
| Spindle | AISI-420 (A2-DIN 1.4021) |
| Coating | RAL-5015 with WRAS-DVGW-W270 Approval (min 250 microns) |
| Actuation | Handwheel |
| Flow Direction | Bi-Directional |
| Warranty Period | 5 YEARS Warranty |
