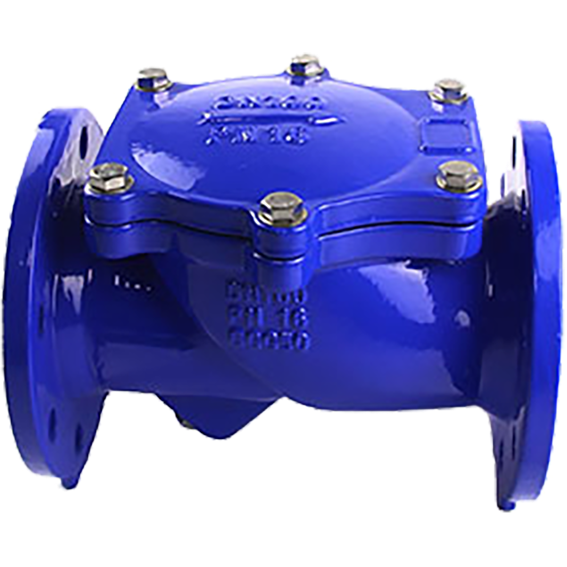

Model FCV Non Return Flap Check Valve, DN200-PN10, NBR

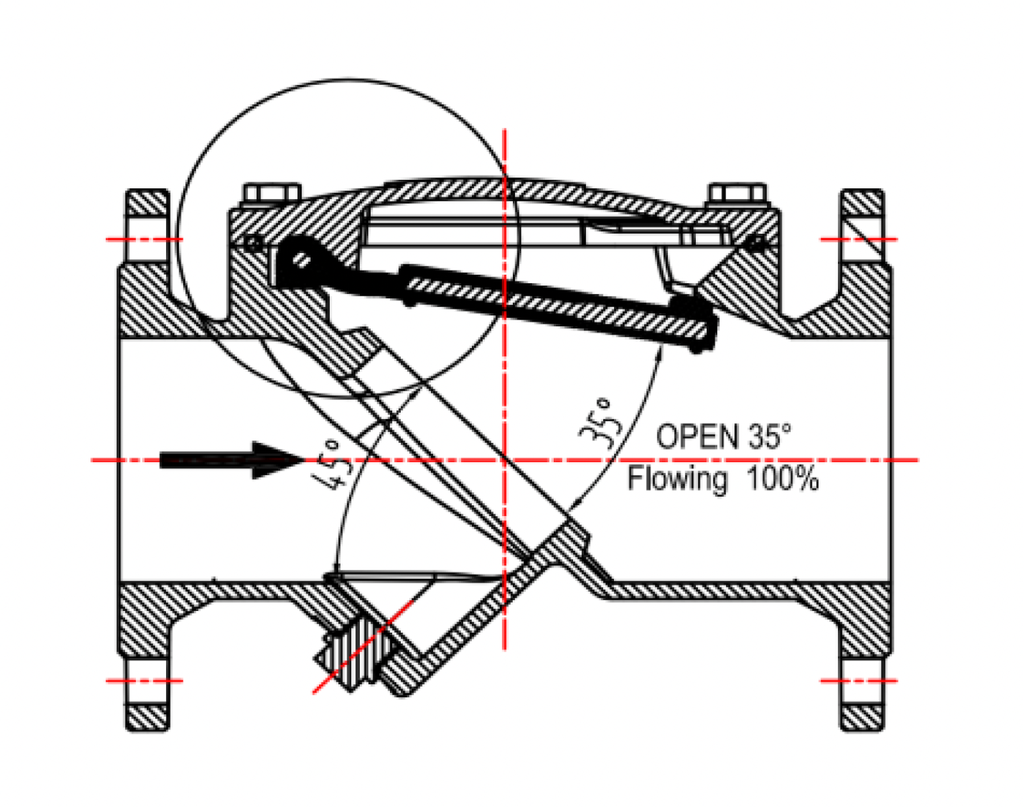

Non Return Flap Check Valve, Flange connection acc.DIN EN 1092-2, Face to face acc. DIN EN 558, series 48 (F6), Resilient seated, 100% free opening, Body: GGG50 / EN-GJS-500-7, Bolts: stainless steel A2-70/SS304. Including A2 Drain Plug. Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK.
| DN Size | DN200 |
| Connection / Pressure (PN) | Flanged PN10 (EN1092) |
| Face to Face | EN-558-1 Series 48 (F6) |
| Sealing Type | NBR |
| Design | Double Flanged |
| Body Material | GGG50 (EN-GJS-500-7) |
| Coating | RAL-5015 with WRAS-DVGW-W270 Approval (min 250 microns) |
| Flow Direction | Uni-Directional |
| Warranty Period | 5 YEARS Warranty |
