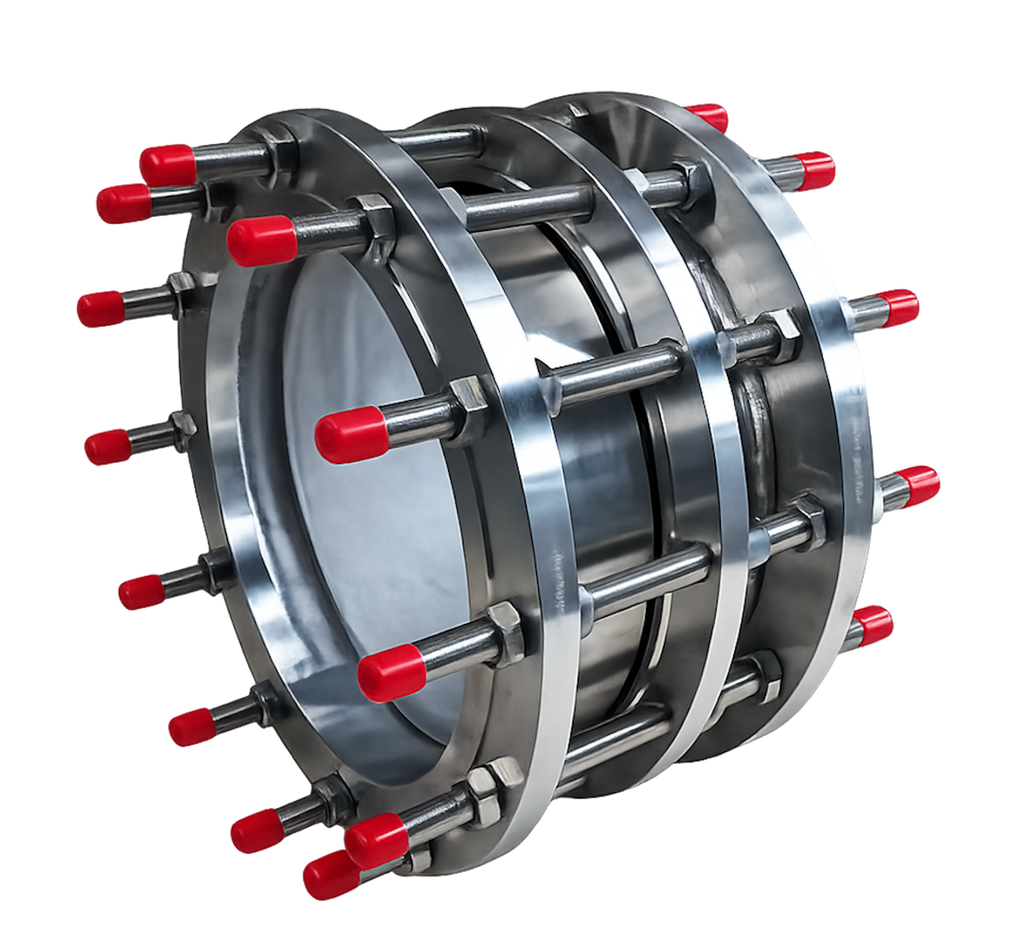

Model DJSS Dismantling Joint Stainless Steel SS316-1.4401 DN150 PN10/16-EPDM

Dismantling Joint, Full Studs, Body: Stainless Steel SS316 (1.4401), Flange connections acc. EN 1092-2: PN10/PN16, Bolts: Stainless Steel SS-316 (1.4401), Nuts: A2-SS-304, Sealing: EPDM, Design according to EN545, Working temperature: 0°C - +80°C. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270. Movement: +/- 25 mm

1,030.75 € 1,085.00 € (Tax excluded)

DN Size
- DN150
Connection / Pressure (PN)
- Flanged PN10/16 (EN1092)
Sealing Type
- EPDM (DVGW W270)
Design
- Double Flanged
Body Material
- Stainless Steel
Warranty Period
- 2 YEARS Warranty

6 Units left in stock

Add to cart

Add to wishlist

Specifications

DN Size	DN150
Connection / Pressure (PN)	Flanged PN10/16 (EN1092)
Sealing Type	EPDM (DVGW W270)
Design	Double Flanged
Body Material	Stainless Steel
Warranty Period	2 YEARS Warranty

DN Size: DN150

Connection / Pressure (PN): Flanged PN10/16 (EN1092)

Sealing Type: EPDM (DVGW W270)

Design: Double Flanged

Body Material: Stainless Steel

Warranty Period: 2 YEARS Warranty
