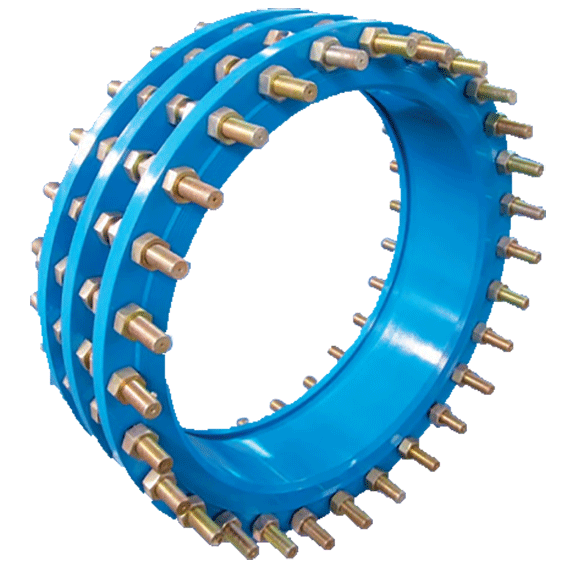

Model DJ Dismantling Joint DN700 PN10-EPDM
Dismantling Joint, Full Studs, Body: GGG-50 (EN-GJS-500-7), Flange connections acc. EN1092-2: PN10/PN16, Bolts, nuts & washers: hot dip galvanised 8.8 carbon steel, Gasket: EPDM, Design according to EN545, Working temperature: 0°C - +80°C, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. All materials in direct contact with Drinking Water acc. UBA-KTW and DVGW W-270.
| DN Size | DN700 |
| Connection / Pressure (PN) | Flanged PN10 (EN1092) |
| Sealing Type | EPDM (DVGW W270) |
| Design | Double Flanged |
| Body Material | GGG50 (EN-GJS-500-7) |
| Coating | RAL-5015 with WRAS-DVGW-W270 Approval (min 250 microns) |
| Warranty Period | 2 YEARS Warranty |
30-day money-back guarantee
Shipping: 2-3 Business Days
