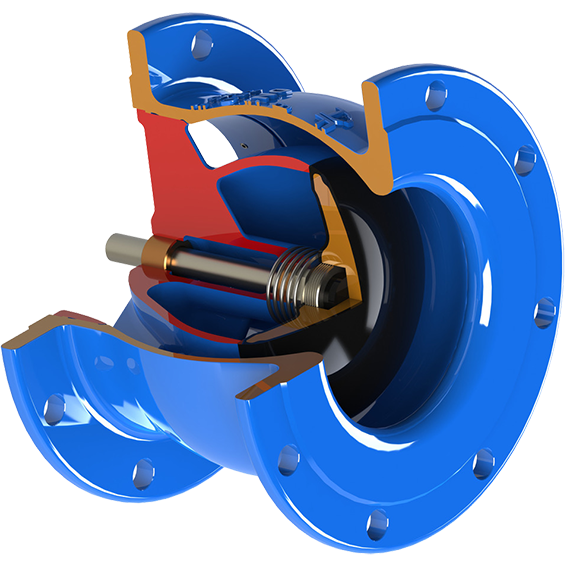

Model SNCV Silent Nozzle Check Valve DN65-PN10/16, EPDM

Model SNCV Silent Nozzle Check Valve DN65-PN10/16, EPDM

Nozzle Check Valve - Silent Type, double flanged type, face to face acc.to EN 558-1 series 14 (F4), Body: ductile cast iron acc. to GGG50, Disc: Ductile Iron + EPDM, Stem: AISI420, Spring: SS-304, Diffuser: GGG50, inside and outside min 250μm fusion bonded epoxy powder coated. All materials in contact with the medium acc. UBA-KTW and Conform to DVGW W-270.
182.50 € 182.50 € (Tax excluded)

  • DN Size
  • Connection / Pressure (PN)
  • Face to Face
  • Sealing Type
  • Design
  • Body Material
  • Coating
  • Flow Direction
  • Warranty Period
6 Units left in stock
Add to cart
Add to wishlist
DN Size DN65
Connection / Pressure (PN) Flanged PN10/16 (EN1092)
Face to Face EN-558-1 Series 14 (F4)
Sealing Type EPDM (DVGW W270)
Design Double Flanged
Body Material GGG50 (EN-GJS-500-7)
Coating RAL-5015 with WRAS-DVGW-W270 Approval (min 250 microns)
Flow Direction Uni-Directional
Warranty Period 5 YEARS Warranty
DN Size: DN65
Connection / Pressure (PN): Flanged PN10/16 (EN1092)
Face to Face: EN-558-1 Series 14 (F4)
Sealing Type: EPDM (DVGW W270)
Design: Double Flanged
Body Material: GGG50 (EN-GJS-500-7)
Coating: RAL-5015 with WRAS-DVGW-W270 Approval (min 250 microns)
Flow Direction: Uni-Directional
Warranty Period: 5 YEARS Warranty
