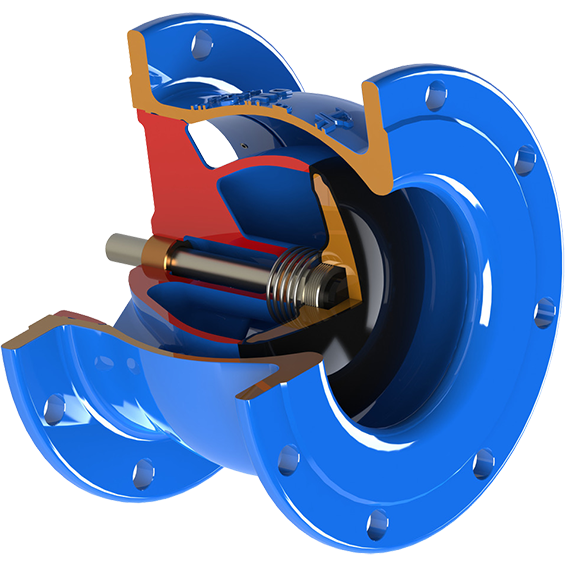

Model SNCV Nozzle Terugslagklep, DN50-PN25, EPDM
Nozzle Terugslagklep, Silent Type, face to face volgens EN 558-1 Series 14 (F4), Huis: GGG50, Klep: GGG50 + EPDM, Stem: AISI-420, Veer: SS-304, Diffuser: GGG50, Coating: Epoxy Coating RAL-5015 min 250 µm acc. RAL-GSK. Alle materialen in direct contact met drinkwater volgens UBA-KTW en DVGW W-270 en WRAS.
| DN Afmeting | DN50 |
| Connection / Pressure (PN) | Flanged PN25 (EN1092) |
| Inbouwmaat | EN-558-1 Series 14 (F4) |
| Dichting | EPDM (DVGW W270) |
| Aansluiting | Double Flanged |
| Behuizing | GGG50 (EN-GJS-500-7) |
| Coating | RAL-5015 with WRAS-DVGW-W270 Approval (min 250 microns) |
| Flow Direction | Uni-Directional |
| Warranty Period | 5 YEARS Warranty |
